Comtech EF Data DT-4511 Ku-Band High Performance RF DownConverter

DT-4511 Series Ku-Band High Performance RF DownConverter

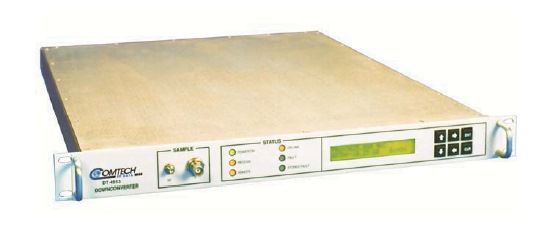

The Comtech EF Data (CEFD) DT-4511 Down Converter is the ultimate in high performance and cost effective Ku-Band frequency conversion. The DT-4511 can be used for SCPC, DAMA, and TDMA, as well as full transponder HDTV and analog TV. Spectral purity and stability characteristics fully meet or exceed the requirements of all domestic, international, and regional commercial satellite networks.

The DT-4511 has +20 dBm minimum output level at the 1 dB compression point and 45 dB of gain as a standard. This capability permits longer cable runs to the modem rack or compensates for elaborate splitting networks without adding expensive options such as external line amplifiers.

The phase noise performance of the DT-4511 exceeds the Intelsat phase noise mask for IBS and IDR services by more than 9 dB. This allows phase dependent demodulators to perform better. The close-in phase noise is very low, making the converter ideal for low bit rate digital circuits such as those used in DAMA hub earth stations.

The remote control interface is selectable between EIA-232 and EIA-485. All configuration control, status retrieval, and adjustments are available as simple ASCII commands through the serial interface or through the front panel menu. As a cost option, the remote control command structure can be customized in order to accommodate existing network control software.

Each DT-4511 is equipped with a detachable module that establishes input and output connections for the RF and IF paths. The module inserts into a rear compartment of the converter, and requires no additional outside space. The module includes SMA connectors for the RF path and BNC connectors at 50 or 75 _ for the IF path.

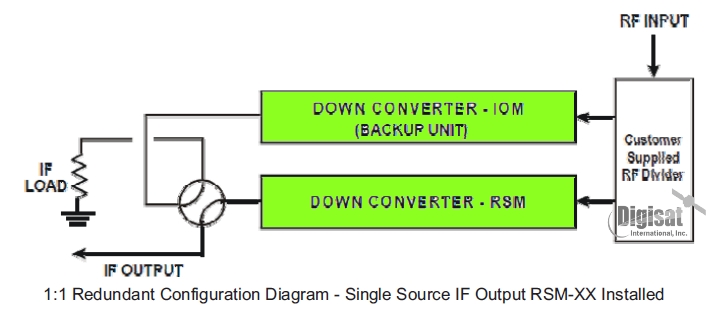

The converter uses CEFD's proprietary "Daisy Chain” integrated switching technology. The Daisy Chain design removes the relays associated with a centralized protection switch tray and distributes them across the individual converters. CEFD was awarded patent 5,666,646 on this distributed protection switch topology.

Daisy Chain technology successfully eliminates a central switching chassis, two power supplies, a microprocessor, and several long, costly cables. Widely accepted in the industry, CEFD’s Daisy Chain provides both pricing and marketing advantages.

Due to its small rack height (1.75 inches) and the elimination of the space penalty paid for a separate 1+N switch chassis, the DT-451X and the Daisy Chain switch architecture provide the most compact and cost effective converter subsystem available. The units are ideal for the construction of transportable systems such as “flyaways,” and high capacity earth stations where space utilization and economy are prime considerations.

Frequency configurations of the DT-451X converters are as follows:

DT-4510             10.95 to 11.70 GHz

DT-4510/D         10.70 to 11.70 GHz

DT-4511             11.70 to 12.20 GHz

DT-4512             12.20 to 12.75 GHz

DT-4512/E          12.50 to 12.80 GHz
