Comtech EF Data DT-4503 C-Band RF Frequency Downconverter System

DT-4503 C-Band RF Frequency Downconverter System

The Comtech DT-4503 C-Band Down Converter offers excellent Low Phase Noise, High Gain and Redundancy Switching capabilities. The DT-4503 Series Downconverter also features exceptional performance in a rugged package and can be used with SCPC, DAMA, TDMA and Broadcast HD or Analog topologies.

High Gain

The DT-4503/X has +20 dBm minimum output level at the 1 dB compression point and 45 dB of gain as a standard. This capability permits longer cable runs to the modem rack or compensates for elaborate splitting networks without adding expensive options such as external line amplifiers.

Low Phase Noise

The phase noise performance of the DT-4503/X exceeds the Intelsat phase noise mask for IBS and IDR services by more than 18 dB. This allows phase dependent demodulators to perform better. The close-in phase noise is very low, making the converter ideal for low bit rate digital circuits such as those used in DAMA hub earth stations.

Minimum Rack Space

Due to its small rack height (1.75 inches) and the elimination of the space penalty paid for a separate 1+N switch chassis, the DT-4503/X and the Daisy Chain switch architecture provide the most compact and cost effective converter subsystem available. The units are ideal for the construction of transportable systems such as "flyaways," and high capacity earth stations where space utilization and economy are prime considerations.

Remote Control

The remote control interface is selectable between EIA-232 and EIA-485, as well as full Ethernet including Telnet, SNMP and pre-loaded HTML GUI. All configuration control, status retrieval, and adjustments are available as simple ASCII commands through the serial interface or through the front panel menu. As a cost option, the remote control command structure can be customized in order to accommodate existing network control software.

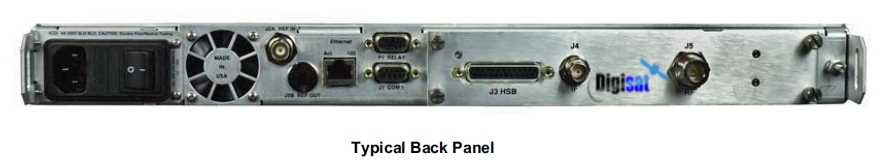

Detachable RF/IF Connector Module

Each DT-4503/X is equipped with a detachable module that establishes input and output connections for the RF and IF paths. The
module inserts into a rear compartment of the converter, and requires no additional outside space. The module includes Type N
connectors for the RF path and BNC connectors at 50 or 75Ω for the IF path.

Daisy Chain Redundancy Switching

The converter uses our patented "Daisy Chain” integrated switching technology. The Daisy Chain design removes the relays associated with a centralized protection switch tray and distributes them across the individual converters. Daisy Chain technology successfully eliminates a central switching chassis, two power supplies, a microprocessor, and several long, costly cables. Widely accepted in the industry, CEFD’s Daisy Chain provides both pricing and marketing advantages.
