Terrasat Ku-Band IBUC R Series Intelligent Block Upconverter (12.75 - 14.5 GHz) 50W - 100W
High linearity, available with integral AC power supply or separate DC power supply, internal 10MHz reference, AGC or ALC circuits hold gain

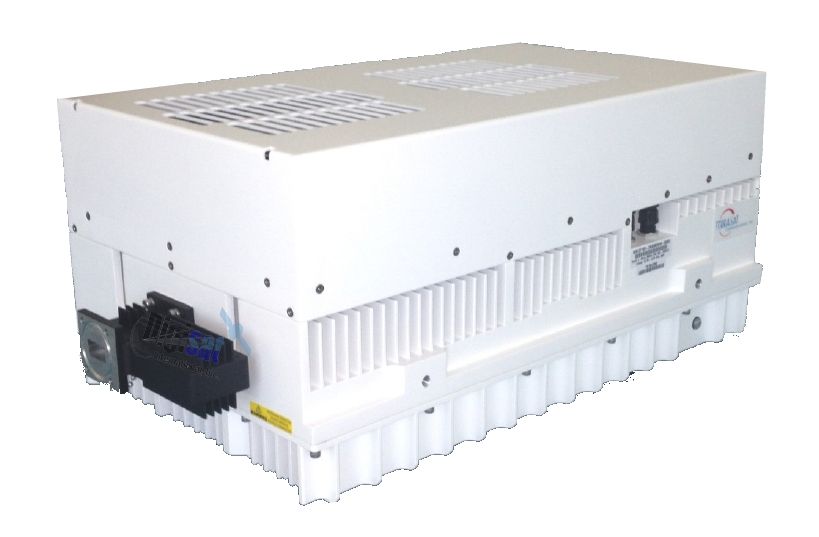

IBUC R Ku-Band Intelligent Block Upconverter
The Terrasat Ku-Band IBUC R Series has all of the advanced IBUC features and the upgraded RJ45 M&C connector. This block upconverter offers significant benefits including low terminal cost, simple design and installation, superior RF performance and a reliable 1+1 configuration.
The IBUC R Series also provides new interfaces for connecting you to extensive M&C facilities for network management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status
IBUC-R comes with a complete set of diagnostic tools including:
10 MHz input detector Input voltage and current monitoring Transmit L‐band input level detector Transmit RF output level detector User configurable thresholds and alarms
Unique to the IBUC are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.
IBUC-R Cable Diagram
|
Frequency range |
RF |
IF |
|
|
Band 1 Std Ku |
14.00 to 14.50 GHz |
950 to 1450 MHz |
|
|
Band 2 Full Ku |
13.75 to 14.50 GHz |
950 to 1700 MHz |
|
|
Band 3 Low Ku |
12.75 to 13.25 GHz |
950 to 1450 MHz |
|
|
|
|
||
|
Input |
|
||
|
VSWR / Impedance |
1.5:1 max / 50 Ohm |
||
|
Input Connector |
Type N female (50 Ohm) |
||
|
Input Connector options |
Type F (75 Ohm), TNC (50 Ohm) |
||
|
Input power detector |
-55 to –20 dBm |
||
|
|
|
|
|
|
Gain |
|
|
|
|
Small Signal Gain (L-band to RF) with attenuator set to 0 dB |
|||
|
50 W |
78 dB min |
|
|
|
60 W |
79 dB min |
|
|
|
80 W |
80 dB min |
|
|
|
100 W |
81 dB min |
||
|
Attenuator range |
30 dB variable in 0.1 dB steps |
||
|
Gain flatness |
|
|
|
|
Full band |
|
4 dB p-p max |
|
|
36 MHz |
|
1.5 dB p-p max |
|
|
1 MHz |
|
0.25 dB p-p |
|
|
Gain variation over temperature |
|
||
|
Open loop |
|
3 dB p-p max |
|
|
With AGC |
|
1 dB p-p max |
|
|
|
|
|
|
|
RF Output |
|
|
|
|
Interface |
WR75 cover with groove |
||
|
VSWR |
1.5:1 max |
|
|
|
Rated output power (P1dB) Band 1 & 3 Band 2 |
|||
|
50 W |
+47.0 dBm min |
+47.0 dBm min |
|
|
60 W |
+47.8 dBm min |
+47.5 dBm min |
|
|
80 W |
+49.0 dBm min |
+48.5 dBm min |
|
|
100 W |
+50.0 dBm min |
+49.5 dBm min |
|
|
|
|||
|
IMD3 (2 carriers, 3 dB TOBO) -24 dBc max |
|||
|
Level stability with ALC ±0.5 dB |
|||
|
Output power detector range Rated power to –20 dB |
|||
|
Power reading accuracy ±1.0 dB max. |
|||
|
Spurious In Band |
-65 dBc |
|
|
|
Out of Band |
Complies with EN 301 428/430 and MIL-STD 188-164B |
||
|
Harmonics |
-50 dBc max. |
||
|
Output Noise Power Density |
|||
|
TX |
< -75 dBm/Hz |
|
|
|
RX |
< -145 dBm/Hz |
|
|
|
IBUC SSB Phase Noise External reference |
|
||
|
10 Hz |
-115 dBc/Hz |
-50 dBc/Hz |
|
|
100 Hz |
-140 dBc/Hz |
-75 dBc/Hz |
|
|
1 kHz |
-150 dBc/Hz |
-85 dBc/Hz |
|
|
10 kHz |
-155 dBc/Hz |
-90 dBc/Hz |
|
|
100 kHz |
n/a |
-95 dBc/Hz |
|
|
1 MHz |
n/a |
-110 dBc/Hz |
|
All VSAT and earth station applications including remote, fixed, maritime and flyaway
