AVL Technologies 1260 1.2m Manual Carbon Fiber Flyaway VSAT Antenna is available to buy in increments of 1

Manual Ku-Band Flyaway Antenna System

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

1260 Milsatcom SNG MVSAT

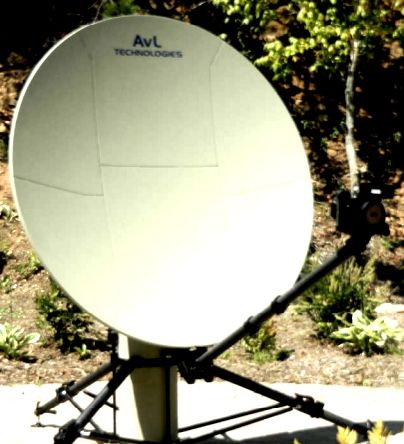

AVL Technologies 1260 Manual Flyaway MIL/SNG VSAT Antenna weighs in at less than 50 lbs and is extremely compact- fitting into only two compact rugged transport cases. The 1260 features a high strength carbon fiber reflector and mounting tubes which offer nominal operation in all environmental conditions.

Self Contained

The antenna also provides an onboard self contained ballest tank for use with water or sand which helps maintain overall antenna stability in high winds. For lightweight, compact, and portable applications, the AVL 1260 is an ideal choice for your mission critical communications needs. AvL’s Azimuth and elevation positioning system features super easy pointing, as well as ultra fine-tuning adjustability. Whether you're delivering remote communications to war fighters or broadcasting a live event, the AVL Manual Flyaway Antenna will interface with all modems, RF electronics and satellite bandwidth services.

Technical Specifications

Mechanical
Reflector Construction	Carbon Fiber
Travel Azimuth Coarse Fine Elevation Coarse Fine Polarization (Ku)	360° Continuous ±10° +10 - 95° +10 - 95° ±95°
RF Interface BUC Mounting Coax	Feed Boom, Rear of Reflector, or Remote Two connectors at Amplifiers
Electrical Interface	Connectors at Amplifiers
Set-up Time	Less than five minutes
Stowed Configuration & Weights Reflector Positioner Tripod Case Integration	29” x 16” x 5.5” 28” x 16” x 6.2”, weighs 20 lbs. 14.9” x 14.7” x 28.4”, weighs 18.7 lbs Antenna fits into 2 lightweight aluminum cases, 33.5” x 24.5” x 15.5”
Total Weight	59.5 lbs.
Environmental
Wind – Survival (anchored)	80 mph in zenith (90° elevation) position
Wind - Operational Without anchoring With anchoring	20 mph 30 mph gusting to 45 mph
Pointing Loss in Wind Ku-Band Receive, Operational Winds	0.35 dB typical, 0.7 dB max
Temperature Operational Survival	-22° to 125° F (-30° to 52° C) -40° to 140° F (-40° to 60° C)
RF / Electrical
Frequency Range (GHz) Receive Transmit	10.95 - 12.75 13.75-14.50
Polarization Configuration	Linear orthogonal standard, optional co-pol
Gain (mid-band) Receive Transmit	41.65 dBi 43.15 dBi
-3dB Beamwidth (midband) Receive Transmit	1.5˚ 1.2˚
Radiation Pattern Compliance	FCC 25.209, ITU-R S.580-6, IESS 208
G/T with 50˚ LNB, midband, clear horizon	21.3 dB/˚ K
Antenna Noise Temp. (mid-band, 20° el)	54° K
Power Handling Capability	500 watts
VSWR	1.30:1
Cross-Polarization Isolation (Ku only) On Axis (minimum) (Rx/Tx) Within Pointing Cone (Rx/Tx)	35 dB / 35 dB 28 dB / 30 dB
Feed Port Isolation (Tx to Rx) Receive Transmit	35 dB 80 dB (includes filter)
