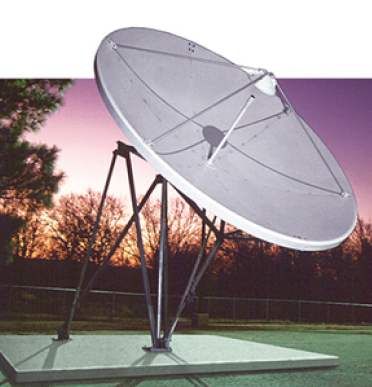

ASC Signal 4.5m Manual Tripod Mount Antenna System
3 year warranty on all structural components, High gain, Easy assembly, Russian Homologation Certificate # OC/1-AO-136
ASC Signal manual tripod mount 4.5 Meter antenna provides excellent performance over C-Band, Ku-Band and X-Band. Great versatility is offered by the 4.5m ASC Signal antenna as it can be configured as TX/RX or RX only. C-band Circular polarization is available with power handling capabilities up to 500 Watts.
High Wind Tripod Mount . . . . . with Motor . . . . . . . . 150 mph (240 km/h) in Stationary Position, without Motor . . . . . . 150 mph (240 km/h) in Stationary Position
Wind Loading (Operational)
Pedestal or Tripod Mount . . . with Motor . . . . . . . . 45 mph (72 km/h) with Gusts up to 65 mph (105 km/h) without Motor . . . . . . 45 mph (72 km/h) with Gusts up to 65 mph (105 km/h)
High Wind Tripod Mount . . . . . with Motor . . . . . . . . 100 mph (160 km/h) with > 2 dB Signal Loss @ 6 GHz without Motor . . . . . . 100 mph (160 km/h) with > 2 dB Signal Loss @ 6 GHz
Rain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 mm (4 in per hour)
Solar Radiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1135 Watts/m2 (360 BTU/h/ft2)
Relative Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . 100%
Shock and Vibration . . . . . . . . . . . . . . . . . . . . . . . . As Encountered by Commercial Air, Rail and Truck Shipment Atmospheric Conditions . . . . . . . . . . . . . . . . . . . . . . As Encountered by Moderately Corrosive Coastal and
|
Frequency (GHz) |
3.625- |
|
5.850- |
3.625- |
5.850- |
3.625- |
5.850- |
10.700- |
13.750- |
7.250- |
7.900- |
|
|
4.200 |
|
6.425 |
4.200 |
6.425 |
4.200 |
6.425 |
13.250 |
14.800 |
7.750 |
8.400 |
|
Antenna Gain at Midband dBi |
43.70 |
|
46.50 |
43.80 |
46.60 |
43.70 |
46.50 |
52.40 |
53.60 |
48.20 |
49.00 |
|
Antenna Noise Temperature 10˚ Elevation |
|
52 K |
|
47 K |
|
54 K |
|
53 K |
|
45 K |
|
|
30˚ Elevation |
|
39 K |
|
34 K |
|
41 K |
|
41 K |
|
34 K |
|
|
50˚ Elevation |
|
35 K |
|
30 K |
|
37 K |
|
38 K |
|
29 K |
|
|
Cross Polarization On Axis |
N/A |
|
N/A |
30 dB |
35 dB |
30 dB |
35 dB |
30 dB |
35 dB |
N/A |
N/A |
|
Within 1 dB Beamwidth |
N/A |
|
N/A |
30 dB |
35 dB |
30 dB |
35 dB |
30 dB |
35 dB |
N/A |
N/A |
|
Axial Ratio |
2.30 dB |
|
0.75 dB |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
1.20 dB |
1.20 dB |
|
Waveguide Interface Flange |
Brass |
Brass |
Aluminum |
Aluminum |
Brass |
Brass |
Brass |
Brass |
Aluminum |
Aluminum |
|
|
CPR-229 G |
CPR-137G |
CPR-229 G |
CPR-137G |
CCPR-229 G |
CPR-137G |
WR75 |
WR75 |
WR112 |
WR112 |
|
Tx Power Capacity |
500 W |
|
5000 W |
|
2500 W |
|
2000 W |
|
750 W |
|
Wind Loading (Survival) - Pedestal or Tripod Mount . . . . . with Motor . . . . . . . . 125 mph (200 km/h) in Stationary Position, without Motor . . . . . . 125 mph (200 km/h) in Stationary Position
