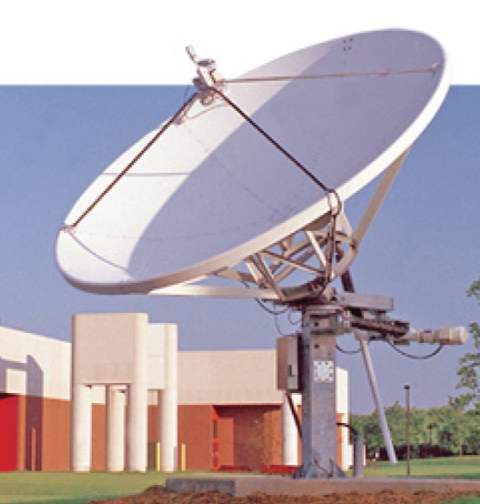

ASC 4.5M Pedestal Mount Antenna Custom Configuration

4.5 Meter Receive Only Satellite Antenna (Custom Configuration)

The ASC 4.5M pedestal mount antenna is available in C-band, Ku-Band, or C and Ku-Band configurations. This custom configuration includes many options including a hand wheel kit, lubrication kit and tool kit.

Key Features and Included Options:

• Operates in environments of -40 to 52°C and up to 100% relative humidity
• 3-phase equipment operates at 400V 50Hz
• Single phase equipment operates at 230V 50Hz
• Hand Wheel Kit used with motorizable 4.5M Antennas ES45MPJ-1 (p/n: 221196)
• Hand Crank Adjustment Kit used only with manual 4.5M antennas ES45P-1 (p/n: 207885) not included
• Lubrication and Maintenance Kit (p/n: 209906)
• Two (2) Hand Wheel Kits (p/n: 221196)
• Two (2) Tool Kits, Small Motorized Antennas, (p/n: TK-MOT-SML)
• Motorized 4.5 meter dish with pedestal, limited motion antenna 120° azimuth and 90° elevation
• Azimuth and elevation speed of 0.05° /s to 0.5°/s
• F/D ratio 0.34
• Surface accuracy RMS 0.762mm
• Can be configured to receive both left hand circular (LHCP) and right hand circular (RHCP) circular polarized signals simultaneously (if applicable)
• Configured for C-band receive
• NO feed included
• Includes normal feed struts.
• Price doesn't include any installation services
• No tracking receiver is included
• Antenna is capable of tracking GEO and HEO satellites with two line element (TLE) sets.
• RF connectors (if applicable) are either be SMA (F) or Ntype (F) with 50Ω impedance
• Antenna communicates with the ACU through a 10 to 100 meter Ethernet copper cable. Customer to obtain the network cabling and media converters.
• Antenna is shipped in heavy duty wooden crates with ISPM15 rating for international shipment
• Digisat's special photo documentation services are included
