Quintech Electronics AMP 2150 Adjustable Gain L-Band Line Amplifier
Rugged, weatherproof extruded housing, DC power for LNB's, passes 10 MHz reference

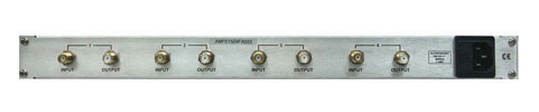

AMP 2150 Adjustable Gain Line Amplifier
Designed and optimized specifically for the 700-2150 MHz frequency band, the Quintech AMP 2150 (AMP21501FK000) Line Amplifier provides variable gain to optimize the L-Band signal path through long coaxial cable runs and distribution networks. The unit is powered via the output F connector and will pass DC for LNB power. The unit also passes a 10 MHz Reference. Like all other Quintech RF products, the AMP series amplifiers are manufactured using highly reliable surface mount technology and advanced microstrip RF circuitry. Housed in a rugged, weatherproof extruded housing, the Quintech 21501 series represents the optimum choice for any 700-2150 MHz system application, indoors or out.
Features & Benefits
- Centralized redundant power source for up to 16 active devices
- Two hot-swappable (shared) PSUs on individual drawers
- Eliminates costly downtime
- Allows scheduled maintenance of receivers without interrupting LNB power
- Both supplies in the RPS are monitored by a summary alarm which employs a serial RS-422 interface

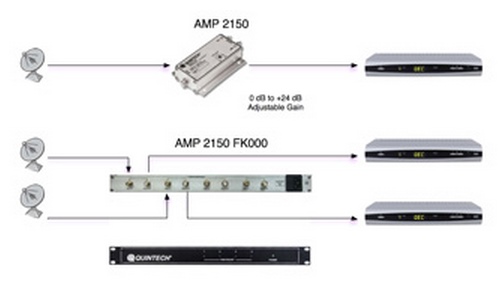

Typical Configuration Diagram
Frequency: 700-2150 MHz
Gain Range: 0 dB to +24 dB adjustable by internal pot (factory-preset to 20 db)
10 MHz Insertion Loss: 1.5 dB + 0.5 dB @ +20 dB gain
Frequency Response: + 1 dB
Noise Figure: 10 dB at +20 dB gain
Input P1dB: -10 dBm
MTBF: 54 Years
IIP3: +4.5 dBm (with 20 dB gain and Pin = -30 dBm)
Group Delay: + 0.1 ns
Phase Noise: At analyzer minimum capability
Input Return Loss: 12 dB min.
Output Return Loss: 12 dB min.
Power Requirements: +18 to +24 V , 190 mA
Power Consumption: 4.6 W
RF Connectors: Type F, 75 _
Power Connectors: Via Output Connector
Operating Temperature: -10° to +60° C
Mechanical: 5.00" L x 3.25" W x 1.25" H
Weight: 0.5 lbs
Certifications: CE
Provides variable gain to optimize the L-Band signal path
