Details

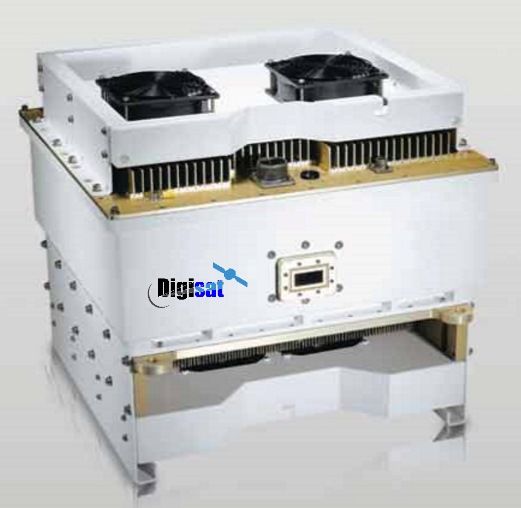

ALB180 250 Watt BUC C-Band

Agilis Satcom ALB180 K-Series 250W C-Band Rugged BUC (Block Upconverter) is an outdoor, antenna mounted RF transmitter for satellite communication systems that's ideal for remote SCPC, MCPC, DAMA, & TDMA Networks.

The ALB180 250 Watt BUC is field proven under harsh environmental conditions, and can withstand temperatures ranging from -40ºC to +60ºC with up to 100% humidity. The ALB180 C-Band BUC offers a wide range of distinctive advantages and enhanced features for satellite communications systems based in remote or challenging geographic regions.

Reliable & Cost Effective

The equipment employs L-Band interface to the indoor unit. Agilis ALB 180-K Series C-Band BUC is a low cost solution suitable for broadband application (such as DVB-RCS) in satellite IP networks.
