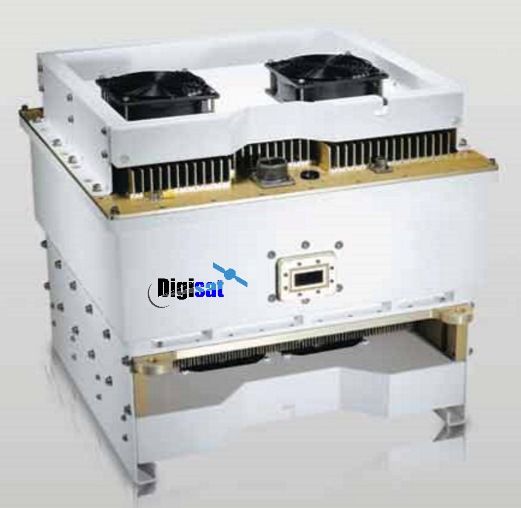

Agilis Satcom ALB180 K-Series 300W C-Band Rugged BUC (Block Upconverter)
Adjustable gain, Local Oscillator unlocked alarm, Super low spurious
ALB180 C-Band 300 Watt BUC
Agilis Satcom ALB180 K-Series 300W C-Band Rugged BUC (Block Upconverter) is an outdoor, antenna mounted RF transmitter for satellite communication systems that's ideal for remote SCPC, MCPC, DAMA, & TDMA Networks.
The ALB180 300 Watt BUC is field proven under harsh environmental conditions, and can withstand temperatures ranging from -40ºC to +60ºC with up to 100% humidity. The ALB180 C-Band BUC offers a wide range of distinctive advantages and enhanced features for satellite communications systems based in remote or challenging geographic regions.
Versatile
The equipment employs L-Band interface to the indoor unit. Agilis ALB 180-K Series C-Band BUC is a low cost solution suitable for broadband applications (such as DVB-RCS) in satellite IP networks.
Features
Available for all C-Band frequencies
Direct antenna mount
Wide operating temperature range -40ºC to +60ºC
Standard RS232/485 interface & optional
SNMP/HTTP M&C option
Excellent linearity
Extremely reliable
High power efficiency
Excellent phase noise characteristics
Satellite Earth Stations, Teleports, Video Broadcasting and any application that requires higher power over full C-Band frequencies.
