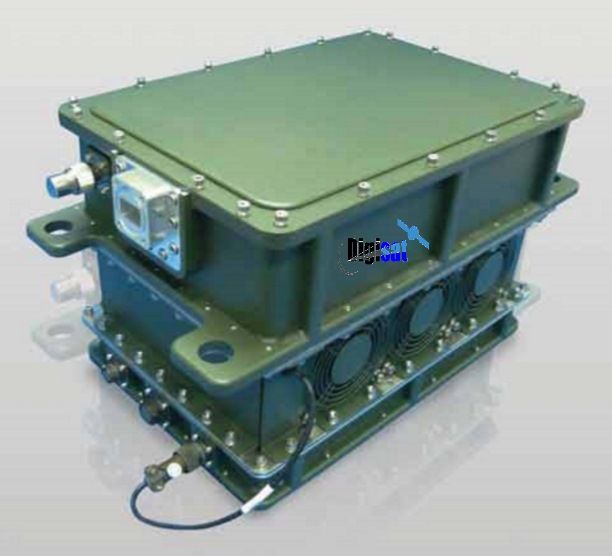

Agilis Ruggedized Series 20W Ku-Band Military Satcom Block Upconverter

MilSatcom 20 Watt Ku BUC

Agilis Ruggedized Series 20W Ku-Band Military Satcom Block Upconverter is an outdoor RF transmitter for satellite communication systems that's ideal for remote military applications such as SCPC, MCPC, DAMA, & TDMA VSAT Networks.

Highly Rugged

This ruggedized 20 Watt BUC is field proven under harsh environmental conditions, and can withstand temperatures ranging from -40ºC to +55ºC with up to 100% humidity. Designed for compliance with MIL STD 810F, the Agilis ruggedized series 20W BUC can withstand extreme shock and vibration, while maintaining excellent performance & efficiency.

AC Power Input

The unit works on a wide range AC power supply of 207V to 253V.

Features:

Compact and lightweight

Available for all Ku-Band frequencies

Forward & reverse power detection facility

Input power detection facility

Intuitive monitoring & control through RS232/485

Ethernet (SNMP & HTTP) & Bluetooth

Automatic fault identification & alarm generation

Temperature compensation facility

Built-in redundancy facility

Built-in 10MHz reference with auto-detection

Built-in harmonics reject filter

Sample port for output monitoring

Wide operating temperature range -40ºC to +60ºC

RoHS Compliant

Waterproof
