SKU

ALB229-40W-Ku

Agilis Satcom ALB229 40W Ku-Band Compact VSAT Block Upconverter is available to buy in increments of 1

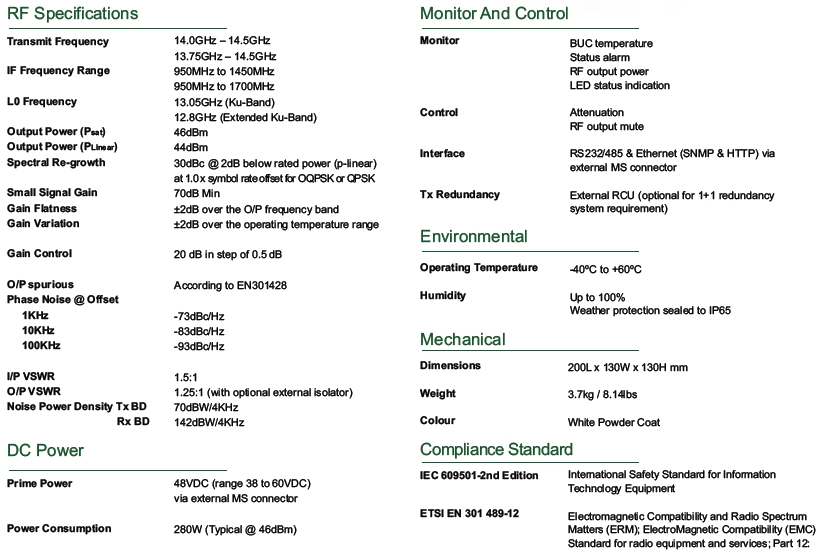

13.75 to 14.5 GHz, Weight: 8.1 lbs, Compact Antenna Mounting Footprint

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

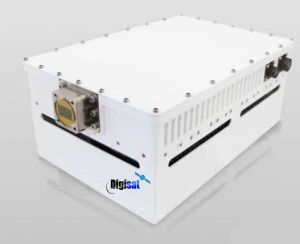

ALB229 40 Watt BUC Ku-Band

The Agilis Satcom ALB229 40W Ku-Band Compact VSAT Block Upconverter is an outdoor RF transmitter for satellite communication systems that's ideal for all VSAT antennas from flyaway to SNG, and mobile to maritime, as well as compact cassegrain earth station hubs.

Mobile VSAT Friendly

This small and lightweight BUC is ideal for SOTM applications while also offering benefits for fixed and maritime applications. Designed to be mounted on the feed horn, the BUC has “Best in Class” efficiency and “lowest power consumption” with less than 330W. The unit works on a wide range DC power supply of 38V to 60V.

Redundancy

Innovative and efficient thermal design makes this BUC on of the smallest, robust, reliable and rugged enough to withstand outdoor conditions in the industry. The unit can be configured to work in 1:1 redundant mode by adding on a simple redundancy option to the basic unit.
