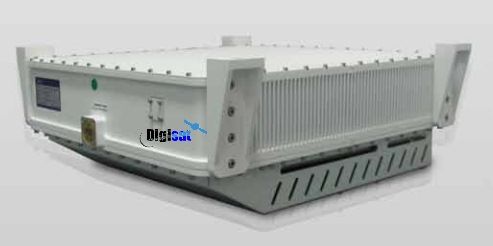

Agilis Satcom ALB229 250W Compact Ku-Band Satellite Block Upconverter

ALB229 Ku-Band 250 Watt BUC

The Agilis Satcom ALB229 250W Compact Ku-Band Satellite Block Upconverter is an outdoor RF transmitter for satellite communication systems that's ideal for all VSAT, earth station, SNG antennas & maritime communications systems. This small and lightweight BUC is ideal for TDMA, DAMA, MCPC & SCPC applications while also offering benefits for fixed and maritime applications.

Versatile

Designed to be mounted on the antenna itself, the ALB229 250W BUC has “Best in Class” efficiency and “lowest power consumption” with less than 600W. The unit works on a wide range of AC power inputs from 94 to 264 Volts AC. The unit can be configured to work in 1:1 redundant mode by adding on a simple redundancy option to the basic unit.

Key Features

Compact and light weight

Available in both standard and extended Ku-Band

Forward power and reverse power detection

Input power detection, Intuitive monitoring & control through

RS232/485 & Ethernet (SNMP & HTTP), Bluetooth and WiFi

Automatic falut identification and alarm generation

Temperature compensation faclity

Built-in redundancy facility

Built-in 10MHz reference with auto-detection

Built-in receive reject filter

Sample port for output monitoring

Wide operating temperature range -40 to +60 deg C

RoHS compliant

Waterproof
