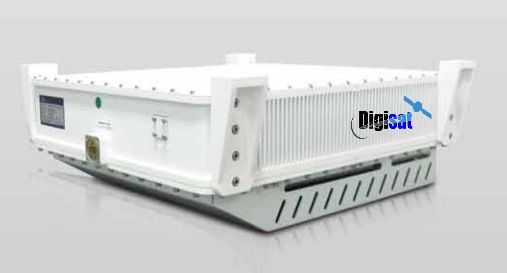

Agilis Satcom ALB229 150W Compact Ku-Band Satellite Block Upconverter
13.75 to 14.5 GHz, LO Frequency: 13.05 or 12.80
ALB229 Ku 150 Watt VSAT BUC
The Agilis Satcom ALB229 150W Compact Ku-Band Satellite Block Upconverter is an outdoor RF transmitter for satellite communication systems that's ideal for all VSAT, earth station, SNG antennas & maritime communications systems.
Light Weight
This small and lightweight BUC is ideal for TDMA, DAMA, MCPC & SCPC applications while also offering benefits for fixed and maritime applications. Designed to be mounted on the antenna itself, the ALB229 150W BUC has “Best in Class” efficiency and “lowest power consumption” with less than 600W. The unit works on a wide range of AC power inputs from 94 to 264 Volts AC.
Redundancy
The unit can be configured to work in 1:1 redundant mode by adding on a simple redundancy option to the basic unit.
Features
Compact and light weight
Available in both standard and extended Ku-Band
Forward power and reverse power detection
Input power detection
Intuitive monitoring & control through
RS232/485 & Ethernet (SNMP & HTTP)
Bluetooth and WiFi, Automatic falut identification and alarm generation
Temperature compensation faclity
Built-in redundancy facility
Built-in 10MHz refereence with auto-detection
Built-in receive reject filter
Sample port for output monitoring
Wide operating temperature range -40 to +60 deg C
RoHS compliant
Waterproof
Ku-Band Transmit Applications, Video Uplink Systems, Content Delivery Networks, Remote Communications
