Adtec edje 4111 High Definition Media Player Decoder System
Supports up to 1080P 60 , Media player and decoder all in one chassis
edje-4111 Media Player IP Decoder
This product has reached end of life and is no longer available. Please contact us for a suitable replacement.
The leading-edge Adtec edje 4111 HD is a digital media player for AVC/H.264 and MPEG 2 high and standard definition file playback and IP stream decoding. Whatever your source, the 4111 series can automatically scale the content to match your output target up to 1080P60 for outstanding HD playback over all video systems. The highly advanced 4111 can easily be configured using the included web-based control application and front panel menu.
Video |
|
Video Outputs |
|
|
One decode output configurable to DVI-I or Composite (BNC) |
|
|
Error concealment and de-blocking filter |
|
|
Video aspect format |
4x3 or 16x9 (or custom mode via API command) |
|
Back-to-back frame accurate playback from same output port |
|
|
Standard Definition (SD) Decode |
|
|
MPEG 2 SD |
MP@ML |
|
MPEG 2 SD |
422P@ML |
|
AVC/H.264 |
MP@L3.1 |
|
High Definition (HD) Decode |
|
|
MPEG 2 HD |
MP@HL |
|
AVC/H.264 HD |
MP@L4.1 and HP@L4.1 |
|
Audio |
|
|
Audio Outputs |
|
|
S/PDIF digital audio (RCA female) |
Unbalanced analog stereo audio (1/8 female) |
|
Dolby Digital AC-3 |
Bit rates up to 640kbps. |
|
MPEG 1 and MPEG 2 Layer I, II and III (MP3) 2.0 |
Bit rates up to 448kbps (Layer I), 384kbps (Layer II) or 320kbps (Layer III) |
|
AAC-LC MPEG-2 and MPEG-4 |
Bit rates up to 384kbps. |
|
edje Media Player |
|
|
Storage |
160GB internal PATA drive |
|
Adtec optimized POSIX compliant embedded Linux 2.6 kernel |
|
|
Power |
70-240 VAC 50-60Hz or 12 VDC |
|
Size |
8.5in. wide, 10.5in. deep, 1.70in. tall |
|
Weight |
4 lbs. |
|
Environmental |
0 to 90 Degrees Fahrenheit |
|
Communications and Control |
|
|
Ethernet 10/100 (RJ-45) |
Half Duplex |
|
Ethernet Protocols |
HTTP |
|
Serial Communications |
2-RS232 (38400-115,200K, 8, 1 N) |
|

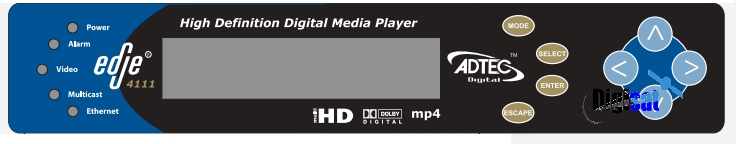

Front Panel |
|
|
Keypad |
Mode, Select, Enter, Escape, Up, Down, Left, Right |
|
Blue Translucent LCD |
20 characters by 2 rows |
|
Host Status LEDs |
Power, Alarm, Link, Busy, Storage |
