Norsat International 9000LDN Single-Band Ka (21.2 - 22.2 GHz) DRO LNB (Type-N)

Norsat 9000HCN Ka-Band Series PLL LNB 20.20- 21.20 GHz Type-N Connector

Norsat 9000XDN KA-BAND Ext Ref LNB (21.20 - 22.20 GHz) N-Type

Be the first to review this product

$286.00

SKU

NST-9000LDN

Norsat International 9000LDN Single-Band Ka (21.2 - 22.2 GHz) DRO LNB (Type-N) is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

9000LDN Single-Band Ka DRO LNB

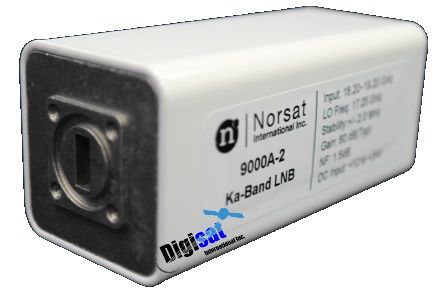

The Norsat 9000LDN Single-band Ka DRO LNB provides excellent RF performance over Ka-Band satellite frequencies ranging from 21.20 - 22.20 GHz. The 9000LDN Series LNB features an extremely stable local oscillator that delivers ±2 MHz L.O. stability. L-Band 950 - 1950 MHz RF output configuration is via a 50-ohm Type-N connector.

RF input: Grooved WR42 waveguide flange.

Local oscillator frequency: 20.25 GHz

Noise Figure: 1.5 dB

9000LDN LNB Frequency Configurations

9000LDN Ordering Information

9000LDN Outline Dimension Diagram

Technical Specifications

Noise figure 1.5 dB max.
L.O. stability ±2.0 MHz
Phase noise (SSB) max -60 dBc/Hz @1KHz -80 dBc/Hz @10KHz -100 dBc/Hz@100KHz
Gain 60 dB typ., 55 dB min. @ full frequency band
Output P1dB + 5 dBm min
DC Power +12V to +24V
DC Current 150 mA Input (waterproof)
WR-42 waveguide Output (waterproof) F-connector (75 ohm) N-connector (optional) (50 ohm)
Dimensions 111mm (L) x 42mm (W) x 42mm (H)
Weight 300 g
Operating Temperature -30 to + 60°C
Storage Temperature -40°C to +80°C

Applications

Ka satellite service reception, Video content delivery, TVRO, VSAT
