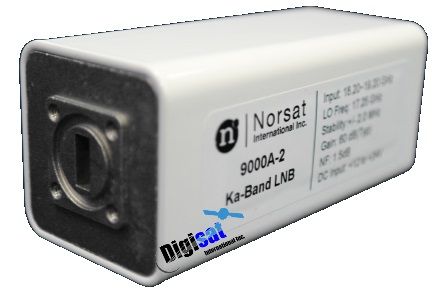

Norsat 9000LB Single-Band Ka (19.2 - 20.2 GHz) DRO LNB

Norsat International 9000LDF Single-Band Ka (21.2 - 22.2 GHz) DRO LNB (F-connector)

Norsat 9200HE-4 high Stability Ka-Band PLL LNB (17.2 - 18.2 GHz) ±25 kHz F or N-Type

Be the first to review this product

$242.00

SKU

NST-9000LB

Norsat 9000LB Single-Band Ka (19.2 - 20.2 GHz) DRO LNB is available to buy in increments of 1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

9000LB Single-Band Ka DRO LNB

The Norsat 9000LB Single-band Ka DRO LNB provides excellent RF performance over Ka satellite frequencies ranging from 19.20 - 20.20 GHz. The 9000LB Series LNB features an extremely stable local oscillator that delivers ±2 MHz L.O. stability. L-Band 950 - 1950 MHz RF output configuration is provided via a 75-ohm F-connector (9000LBF) or Type-N (9000LNB).

RF input: Precision grooved WR42 waveguide flange.

Local oscillator: 18.25 GHz

Noise Figure: 1.5 dB

9000LB Frequency Configurations

9000LB Ordering Information

9000LB Outline Dimensions Diagram

Technical Specifications

Noise figure 1.5 dB max.
L.O. stability ±2.0 MHz
Phase noise (SSB) max -60 dBc/Hz @1KHz -80 dBc/Hz @10KHz -100 dBc/Hz@100KHz
Gain 60 dB typ., 55 dB min. @ full frequency band
Output P1dB + 5 dBm min
DC Power +12V to +24V
DC Current 150 mA Input (waterproof)
WR-42 waveguide Output (waterproof) F-connector (75 ohm) N-connector (optional) (50 ohm)
Dimensions 111mm (L) x 42mm (W) x 42mm (H)
Weight 300 g
Operating Temperature -30 to + 60°C
Storage Temperature -40°C to +80°C

Applications

Ka-Band Satellite service reception, Commercial TVRO, Broadband Services
