MFC 7894D C-Band Radar Interference Elimination Filter

MFC 7894D Waveguide Filter

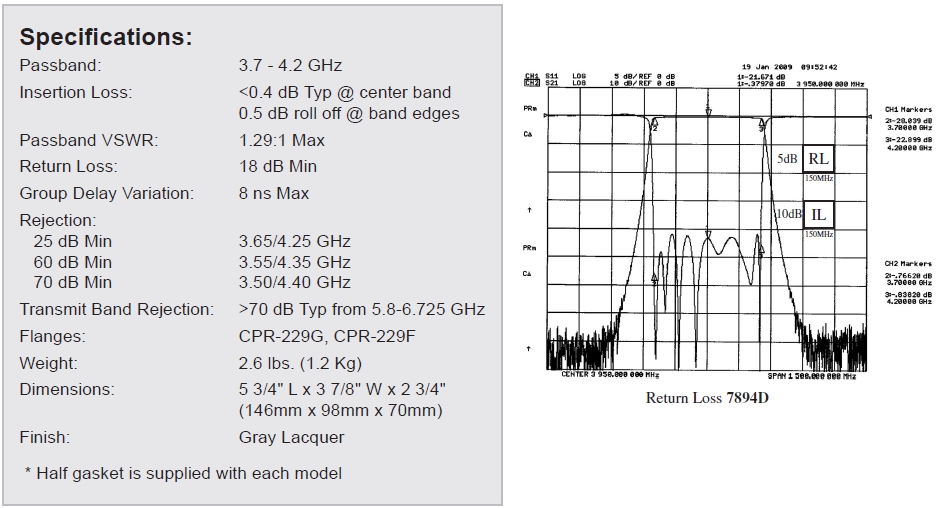

Model 7894D C-Band Radar Elimination Filter offers extremely low loss, typically less than 1.0 dB max on receive signals.

Low Loss

A premium, copper-constructed bandpass filter, the model 7894D achieves the lowest VSWR of any ultra-selective C-band BPF available in the industry.  Since low VSWR = more available signal, this filter is ideal for eliminating WiMAX, RADAR and other sources of interference in fringe or weak signal areas and can also be used to optimize antenna performance at any C-band (3.7-4.2 GHz) receive site.

Custom Frequencies

Extended band (3.6-4.2 GHz) and Super-Extended band (3.4-4.2 GHz) versions are also available upon request.

CPR229G Waveguide Flange
