Evertz Microsystems 7706LT Wideband RF Fiber Transmitter

7706LT Wideband RF Fiber Transmitter

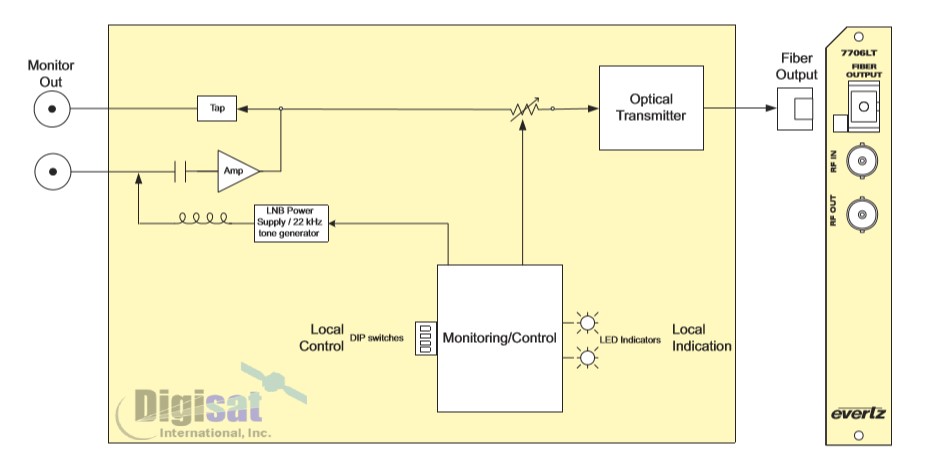

The Evertz 7706LT is a fiber optic transmitter for RF signals in the extended L-Band or wider frequency range. It accepts a single RF input on coaxial cable and provides a single output for optical transmission. An RF monitor output provides a convenient means of obtaining peak satellite signal strength, or additional signal distribution.

Gain may be adjusted manually or managed automatically via AGC. 13/17V DC adjustable LNB power with 22kHz tone is also provided.

Features

• Extended frequency response for extended L-Band and other signals
• Protocol independent design - transports all modulation formats
• LNB power with selectable 13/17V DC
• LNB current limit & short circuit protection
• 22kHz tone on/off for LNB local oscillator control
• RF monitor output for signal peaking and signal distribution
• Manual gain and AGC modes for tuning optimal CNR performance
• Fiber link provides electrical isolation between antenna and facility, mitigating ground loop and lightning issues

The LT series occupies one card slot and can be housed in the 1RU 7801FR frame which holds up to four single or two dual slot modules, the 3RU 7800FR frame which has a 15 slot capacity, the portable 3RU 350FR frame which has a 7 slot capacity, or a standalone enclosure which holds a single module.

Ordering Information

7706LT13- Wideband RF Fiber Transmitter, 1310nm DFB laser

7706LT13-B50- Wideband RF Fiber Transmitter, 1310nm DFB laser, 50Ω BNC Connectors

7706LT13-S50- Wideband RF Fiber Transmitter, 1310nm DFB laser, 50Ω SMA Connectors

Ordering Options

• 75Ω I/O Impedance ships standard

 • Rear plate and fiber connector must be specified at time of order - eg: [model]+SC+3RU

Connector Suffix

+SC                  SC/PC

+ST                   ST/PC

+FC                   FC/PC

+AP+SC            SC/APC (Angle Polished)

+AP+FC            FC/APC (Angle Polished)

+F75                 75Ω F-Type

Rear Plate Suffix

+1RU                1RU rear plate for use with 7701FR Multiframe

+SA                   Standalone Enclosure Rear Plate

+3RU                 3RU rear plate for use with 350FR, 7700FR-C or 7800FR Multiframes

Enclosures

350FR               Portable Multiframe which holds 7 single slot modules

7700FR-C         3RU Multiframe which holds 15 single slot modules

7800FR             3RU Multiframe which holds 15 single slot modules

7701FR             1RU Multiframe which holds 3 single slot modules

S7701FR          7700 Series Standalone Enclosure

Patch Cable

CB-FP1M-SCPC

Single mode fiber cable, 1m, SC/PC male termination

CB-FP1M-STPC

Single mode fiber cable, 1m, ST/PC male termination

CB-FP5M-SCPC

Single mode fiber cable, 5m, SC/PC male termination

CB-FP5M-STPC

Single mode fiber cable, 5m, ST/PC male termination

CB-FP10M-SCPC

Single mode fiber cable, 10m, SC/PC male termination

CB-FP10M-STPC

Single mode fiber cable, 10m, ST/PC male termination
