Evertz 2400PSU-8 Eight Output Power Supply for 2408LT
Provides diode-isolated, redundant DC power for up to eight 2408 modules and upstream LNBs
2400PSU-8 Output Power Supply for 2408LT

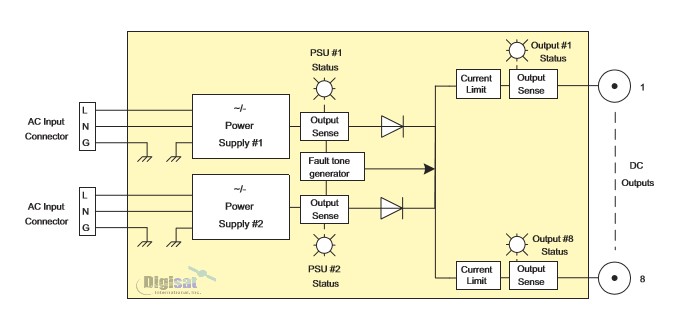

The Evertz 2400PSU-8 is used to supply power for up to eight 2408LT RF fiber optic transmitters including DC power for upstream LNBs. It contains dual, diode-isolated, redundant DC power supplies and provides eight outputs on F-Type connectors.
Features
- Provides diode-isolated, redundant DC power for up to eight 2408LT modules and upstream LNBs
- Active short circuit for protection of each DC output
- LED indicators display the status of each power supply and DC output
- PSU status signal output for remote monitoring via connected SmartMON™ capable fiber transmitter
Ordering Information
Eight output power supply for 2408LT
Patch Cable
CB-FP1M-SCPC
Single mode fiber cable, 1m, SC/PC male termination
CB-FP1M-STPC
Single mode fiber cable, 1m, ST/PC male termination
CB-FP5M-SCPC
Single mode fiber cable, 5m, SC/PC male termination
CB-FP5M-STPC
Single mode fiber cable, 5m, ST/PC male termination
CB-FP10M-SCPC
Single mode fiber cable, 10m, SC/PC male termination
CB-FP10M-STPC
Single mode fiber cable, 10m, ST/PC male termination
|
Power Input |
|
|
Number of Inputs |
2 |
|
Connector |
Male, unterminated and IEC320 inlet connectors, included |
|
Voltage |
Auto-ranging, 100V - 240V AC |
|
Frequency |
50-60Hz |
|
Power |
120 Watts maximum per input |
|
Power Output |
|
|
Number of Outputs |
8 |
|
Protection |
Short circuit, current limit |
|
Connector |
F-Type |
|
Voltage |
18V ±1V DC per output |
|
Current |
900mA maximum per output, 4A max total of all outputs |
|
Physical |
|
|
Dimensions With Flanges |
9.9"L x 5.7"W x 2.0"H |
|
Environmental |
|
|
Temperature |
-20°C to +70°C |
|
Compliance |
|
|
Safety |
CSA Listed, complies with EU Safety Directive |
|
EMI/RFI |
Complies with FCC Part 15 Class A, EU EMC Directive |
