Evertz Microsystems 2307LR Miniature L-Band/Wideband Fiber Optic Receiver
Compatible with 2408LT, 7708LT and 7807LT-2 series fiber transmitters
2307LR Miniature Fiber Optic Receiver
The Evertz 2307LR is a fiber optic receiver in a revolutionary miniature form factor. With the same diameter as a BNC connector, and overall length of 3.3” (85mm), it's the smallest RF optical receiver in the industry. It accepts an optical LC connector input on one end, and provides an electrical output on the other.
This F/O receiver attaches to the input of a device without any intermediate cabling required. This essentially offers direct optical input to the connected piece of equipment, without incurring the cost and rack space associated with using conventional optical receivers. The primary application is in providing direct optical inputs to XRF series routers, without requiring external fiber receiver cards.

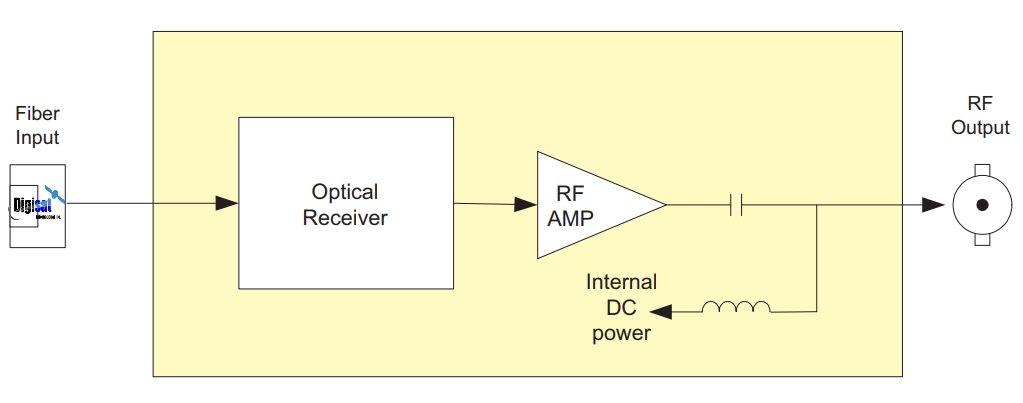

The LR series receives its power from the same connector that attaches to the input of the companion device, therefore it may also be interfaced to any device that provides LNB voltage at its RF input connector. For example, when connected to a 7703DA16-RF-LNB, a fiber receiver with 16 electrical outputs is created. A 2307 connected to the input of a 7703PA-LNB results in a fiber receiver with a high-powered output and adjustable slope compensation. The unit may also be connected to the DC-biased inputs of devices such as IRD’s, facilitating direct optical input via high-performance optical infrastructure.
Features
- Compact, efficient form factor provides fiber receiver functionality in zero rack space
- Provides high-quality, direct optical input to XRF series routers and other devices with DC biased RF input ports
- Wide frequency range for L-Band, over-the-air DTV and other applications
- Tri-color LED optical input strength indicator
- Efficient design featuring high reliability and low power consumption
- Protocol independent - passes any modulation format
- Minimizes the use of coax in the infrastructure, providing the highest possible quality signals over longer distances and without high-frequency rolloff
- Compatible with Evertz 2408LT, 7708LT and 7807LT-2 series fiber transmitters
RF Outputs: Number of Outputs: 1
Connector: BNC per IEC 61169-8 Annex A
I/O Impedance: 75Ω
Frequency Range: 120MHz - 3GHz
Return Loss: 120MHz to 2.3GHz > 15dB
2.3GHz to 3GHz > 12dB
Output: IP3 +40dBm
Link Gain: -6dB at 0dBm optical input, and 0dB gain at the fiber transmitter
Optical Input: Number of Inputs: 1
Connector: Female LC/UPC
Operating
Wavelength: 1270nm-1610nm
Max Input Power: +3dBm
Optical Sensitivity: -14dBm @ 35dB C/N on a 36MHz carrier
DC Input: Voltage: 13V DC nominal, range 9-21V DC
Connector: BNC per IEC 61169-8 Annex A (same connector as RF output)
Power: < 1 Watt
Physical
Dimensions: 3.3” long x 0.57” dia. (84mm long x 15mm dia.)
- Direct optical inputs to XRF routers
- Direct optical inputs to IRD’s and other devices with LNB bias
- Distribution amplifiers with optical input
- Line amps/slope compensators with optical input
