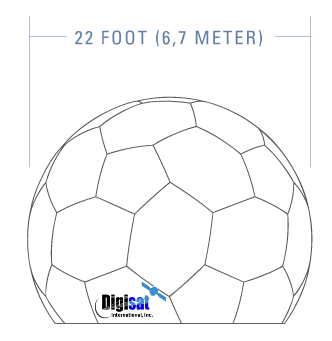

22' (6.7 meter) Terrestrial Composite Radome
22' Terrestrial Composite Radome
The 22-foot (6.7 meter) composite radome is specifically designed for 6.3 meter antennas for applications such as TT&C, Satcom and Tactical. Formed using A and C-sandwich composite construction, our radomes provide optimal RF performance in all popular frequency ranges including L-, S-, C-, X-, Ku- and Ka-band. Ideal for harsh environments, they can be rapidly installed in challenging locations such as war zones and Arctic conditions. Available with a white hydrophobic coating as a standard finish with options for custom super-hydrophobic coatings and colors.
Turnkey radome installation services are available from Digisat utilizing our highly experienced team or our Field Engineer Supervisors can assist on a worldwide basis.
Features
- Impedance matched bolting flanges
- Low IFR
- Minimum Phase Delay
- Pseudo-random panel geometry
- Non-coherent scattering
- Improved side-lobe performance
- Antenna polarization nuetral
- Low passive inter-modulation (PIM)
- No metal framework
- Self supporting, rigid
Materials
- Skin: Fiberglass
- Resin: Fire Retardant Polyester/Epoxy
- Core: Closed Cell Foam/Honeycomb
- Exterior Coating: Hydrophobic & Super Hydrophobic
- Panel joint sealant: Advanced Non-Silicone RTV
- Assembly fasteners: 300 Series Stainless Stee
Environmental
-
Wind loads: 200+ mph (320 km/h)
-
Ice & snow: 50+ psf (245 kg/m2
- Temperature range: -60 F to 160 F (-50 C to 70 C)
- Fire / flame resistance: FED-STD-406, Method 2021 MIL-STD-810
- UV Radiation: Southern Florida Exposure 0 to 100%
- Fungus resistance: MIL-HDBK-454
- Salt atmosphere: Group I Inert MIL-HDBK-810, Method 509
- Hail: Hail Impact Tested
Operating Frequency: L-, S-, C-, X-, Ku- and Ka-Band
Custom designed for your specific application. Wide range of radomes with high wind speed ratings, extreme snow and ice loads, and other atypical environmental conditions.
