MFC 13961WE C-Band WiMAX & Radar Interference Elimination Filter

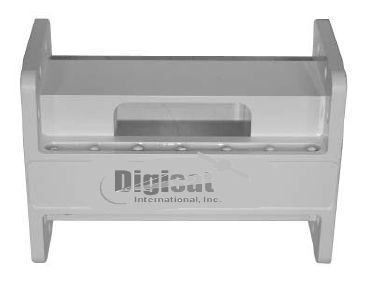

Microwave Filter 13961WE

Model 13961WE C-Band WiMAX and Radar Elimination Filter offers innovative design techniques which produce extremely low loss, typically less than 1.0 dB max on receive signals.

Waveguide Filter Features

Length: 5.49” (13.9 cm)
Weight: 1.125 lb. (0.51 kg)
Passband VSWR: 1.44:1 Typ; 1.5:1 Max.
Group Delay Variation: 7 nS Max.
Rejection : 45 dB Min @ 3.65 GHz / 4.25 GHz
60 dB Typ @ 3.55 GHz / 4.35 GHz
70 dB Typ @ 3.50 GHz / 4.40 GHz

CPR229G (Input), CPR229F (Output)
