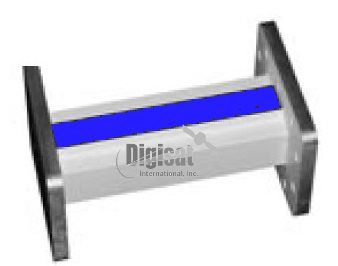

MFC 12086 C-Band Transmit Reject Filter

Be the first to review this product

SKU

12086

MFC 12086 C-Band Transmit Reject Filter is available to buy in increments of 1

Less than .04 dB Loss

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Microwave Filter 12086

This C-Band Transmit Reject filter offers extremely low loss, typically less than 0.04 dB on receive signals while providing a high
degree of transmit rejection ranging from 50 to 80 dB, depending upon the model. Alternate flange
configurations are available upon request.

Models

12086-1

12086XR-1

12086-2

12086XR-2

12086-3

12086XR-3

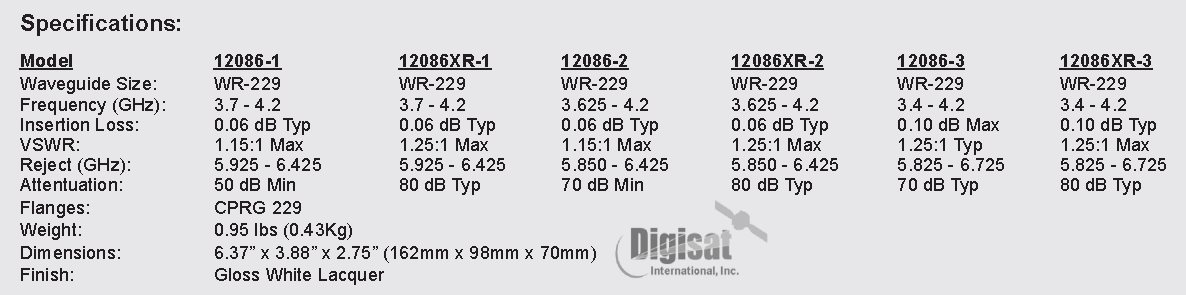

Microwave Filter Corp C-Band TX Reject Filter Specifications

Applications

3.7 to 4.2 GHz
