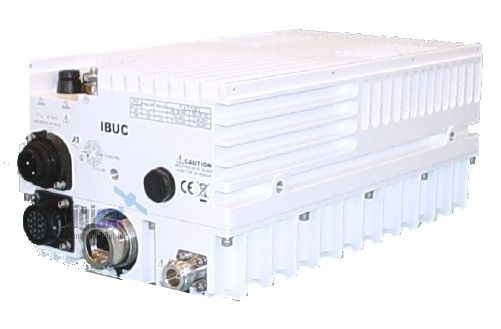

IBUC 2 X-Band Intelligent Block Upconverter (7.9 - 8.4 GHz)

The Terrasat IBUC 2 X-Band series is the latest evolution of the Intelligent Block Upconverters (IBUCs) and has all of the advanced features and reliability of the original IBUC in a new, more compact package.

IBUC 2 offers significant benefits such as high performance in a compact, cost effective package, simple design and installation, simplified 1+1 configurations.

The IBUC 2 also provides new interfaces for connecting you to extensive M&C facilities for network management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status

IBUC 2 comes with a complete set of diagnostic tools including:

10 MHz input detector
Input voltage and current monitoring
Transmit L‐band input level detector
Transmit RF output level detector
User configurable thresholds and alarms

Unique to the IBUC are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.

Terrasat IBUC 2 RF Interface Connections

IBUC-2 Cable Diagram

Terrasat IBUC-2 RF IFL Cabling Diagram

Technical Specifications

Frequency Range

RF IF	7900 to 8400 MHz 950 to 1450 MHz
VSWR / Impedance	1.5:1 max / 50 Ohm
Input Connector	Type N female (50 Ohm)
Input Connector options	Type F (75 Ohm), TNC (50 Ohm)
Input power detector	-55 to –20 dBm
Gain
Small Signal Gain (L-band to RF) with attenuator set to 0 dB 5W 10W 20W 25W 40W 50W	68 dB min 71 dB min 74 dB min 75 dB min 77 dB min 78 dB min
Attenuator range	30 dB variable in 0.1 dB steps
Gain flatness Full band 36 MHz 1 MHz	3 dB p-p max 1 dB p-p max 0.25 dB p-p
Gain variation over temperature Open loop With AGC	3 dB p-p max 1 dB p-p max
RF Output
Interface	CPR-112G or N(f)
VSWR	1.5:1 max
Rated output power P1dB 5W 10W 20W 25W 40W 50W	+37 dBm min +40 dBm min +43 dBm min +44 dBm min +46 dBm min +47 dBm min
Rated output power Plinear 5W 10W 20W 25W 40W 50W	36.5 dBm 39.5 dBm 42.5 dBm 43.5 dBm 45 dBm 46 dBm
Plinear is the maximum linear power as defined by MIL-STD-188-164A.
IMD3 (2 carriers, 3 dB TOBO)	-27 dBc max
Level stability with ALC	±0.5 dB
Output power detector range	Rated power to –20 dB
Power reading accuracy	±1.0 dB max.
Spurious In Band Out of Band	-65 dBc Complies with MIL-STD 188-164
Harmonics	-50 dBc max.
Output Noise Power Density Tx Rx	< -82 dBm/Hz < -82 dBm/Hz
Mute	-70 dBc max.
AM-PM Conversion	< 3.0 deg/dB @ rated power
SSB Phase Noise (External reference) 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz	-120 dBc/Hz -130 dBc/Hz -143 dBc/Hz -152 dBc/Hz -155 dBc/Hz -155 dBc/Hz
SSB Phase Noise (IBUC) 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz	-40 dBc/Hz -70 dBc/Hz -80 dBc/Hz -90 dBc/Hz -100 dBc/Hz -110 dBc/Hz
External Reference (multiplexed on TX IFL) Frequency Level	10 MHz -12 to +5 dBm
Internal Reference - available
Local Oscillator Frequency	6950 MHz
Sense	Non-Inverting
IBUC Power Supply
Voltage (DC/AC)	48 ±11 VDC / 100 to 240 VAC
Option for 5W, 10W	24 ±4 VDC
DC via coax available on 5W - 20W
Power Consumption 5W 10W 20W 25W 40W 50W	60 W / 75 VA 90 W / 130 VA 160 W / 200 VA 175 W / 220 VA 300 W / 350 VA 350 W / 400 VA
Monitor and Control
Ethernet (HTTP, Telnet, SNMP) via RJ-45 connector.
RS232/485, Hand-held Terminal via MS-type connector FSK, multiplexed on TX IFL.
Environmental
Operating temperature 5W - 40W 50W	-40oC to +60oC -40oC to +55oC
Relative humidity	100% condensing
Altitude	10,000 ft., (3,000 m) ASL
Mechanical (DC powered / AC powered) 5W - 10W 20W - 25W 40W - 50W	10.5x6x3.8 in. / 10.5x6x4.2 in. 9 lbs / 10 lbs 10.5x6x5.2 in. / 10.5x6x5.6 in. 10.5 lbs / 11.5 lbs 10.5x6x5.7 in. / 10.5x6x6.1 in. 11 lbs / 12 lbs
