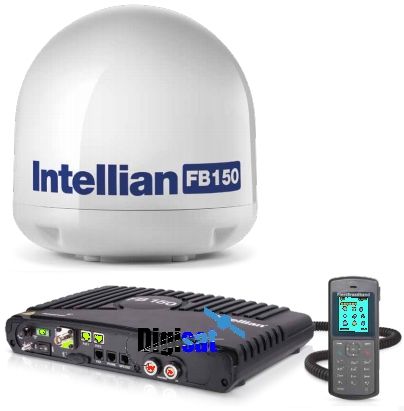

Intellian FB150 Ultra Compact Marine FleetBroadband Antenna System
Ultra Compact mounting footprint, fits all vessels, delivers Worldwide Inmarsat FB150 Network access coverage
Fleetbroadband FB150 Terminal
The rugged and compact Intellian FB150 system is a comprehensive and cost competitive single-user solution designed to provide global coverage, high quality data & voice for business, operational or recreational applications in a compact size and light weight. This antenna system can be configured with an optional matching zise dome solution for aesthetic purposes. The FB150 offers simple user-installation on a wide array of vessels by non-technical crew members. The innovative true IP solution can provide number of benefits for staying connected to marine satellite internet services and voice communicatiuons, while underway at sea.
Compact Global Maritime Terminal
Intellian FB150 key features 8.6 lbs weight and 11.5 inch height, Intellian FB150 is a compact FleetBroadband maritime terminal.
Simultaneous Data & Voice Access
Intellian FB150 key features 150kbps data rates, FB150 provides simultaneous access to data services, voice, and text messaging.
Reliable Hardware
Intellian FB150 key features Powered by the new Intellian FleetBroadband 150 solution, with unrivalled experience in satellite communications, you can be confident of both the equipment quality and the support behind it.
Global Service Network
Intellian FB150 key features As a global solution, not only can you access any of Intellian's global distributors for service, available in over 45 countries around the world.
IP Handset
Intellian FB150 key features The rugged new plug-and-play IP Handset provides an intuitive user interface on a 2.2" TFT color screen and cutting-edge technology, such as an echo cancellation and noise suppression software ensuring excellent audio clarity.
Various Matching Dome Solution
Intellian FB150 key features Various matching size domes are available for Intellian FB150 together with Intellian i-Series (i3, i4), satellite TV antenna systems. Now you can select a perfectly matched dome for the best appearance on your vessel.
Practical & Affordable Inmarsat Airtime
Intellian FB150 key features Inmarsat airtime packages are available to suit the requirements of all categories of user. Hardware and airtime bundle packages are available with additional discounts.

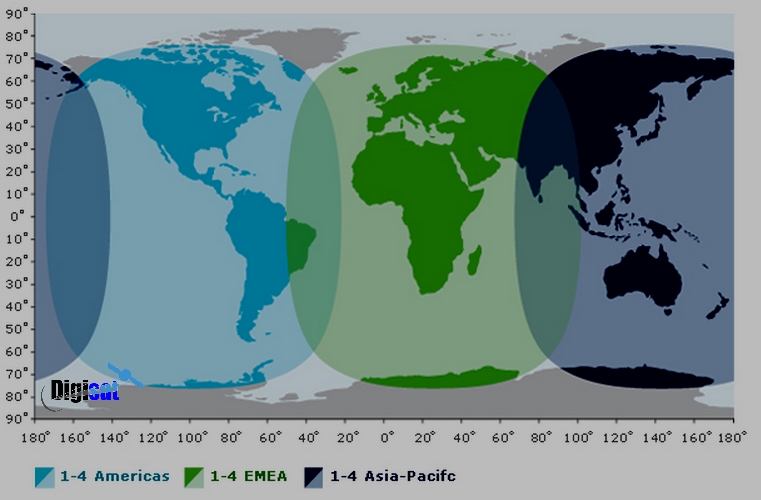

Global Broadband Service Area
Features
Inmarsat's global broadband I4 satellite coverage
Simultaneous voice and data service
Compact and reliable hardware powered by Thrane & Thrane
IP connection for e-mail, internet, and intranet access
LAN interface and router features
IP Handset interface
Various matching dome solutions to Intellian i-Series (Marine Satellite TV Antenna System)
Competitive & customized Intellian Inmarsat airtime

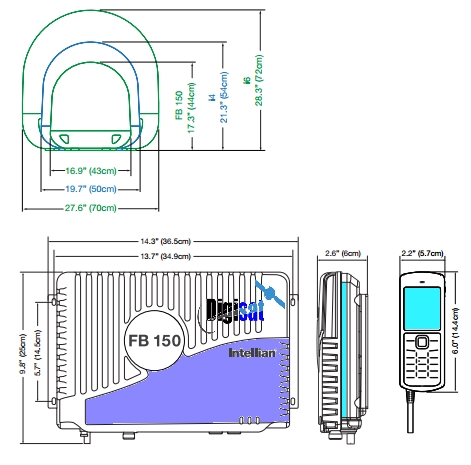

Terminal Dimensions
Part Specifications
Intellian FB150 Inmarsat FleetBroadband 150
Marine Satellite Communication Antenna System
Dimension and Weight
ADU 17.3 x 16.9 in (44 x 43cm) / 9 lbs (4.1kg)
BDU 14.1 x 9.8 x 2.6 in (36 x 25 x 6.7 cm) / 8.5 lbs (3.9 kg)
Environmental Conditions
Operating Temperature -13˚F to +131˚F (-25˚C to +55˚C)
Operating Humidity [ADU] EN60945, [BDU] 95% non-condensing at +40˚C
Water Ingress [ADU] IP56, [BDU] IP31
Approvals Inmarsat FleetBroadband/ RTTE/ CE/ FCC
Warranty 3 Years Parts and 1 Year Labor
Global Services
Voice Digital 4 kbps Voice
Standard IP Up to 150 kbps
SMS Up to 160 characters (3G standard)
FAX Group 3 (via 3.1KHz Audio)
Airtime Service Inmarsat airtime
Frequency Band
Rx 1518.0 MHz – 1559.0 MHz
Tx 1626.5 MHz – 1675.0 MHz
Ch. Width [Rx] 10.5 - 189 kHz, [Tx] 21 - 189 kHz
Power Supply and Consumption
DC Input Range 10 - 32V DC (isolated)
Power (max) 150W @ 10 - 32V (including antenna)
Vessel Phone and Internet access via Inmarsat's Fleetbroadband FB150 Global Network
