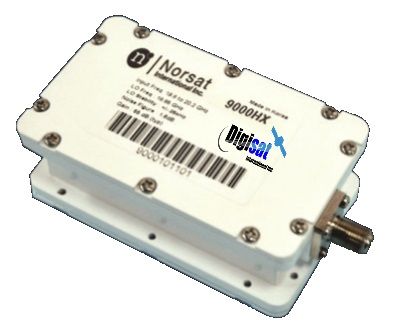

Norsat 9000HX-O3B-ABSN Ka- Selectable Band LNB N-Type
$3,083.00
SKU
NST-9000HX-O3B-ABSN
Norsat 9000HX-O3B-ABSN Ka- Selectable Band LNB N-Type is available to buy in increments of 1
Norsat 9000HX-O3B-ABSN Ka- Selectable Band LNB
The 9000HX-O3B-ASBSN is fully compatible and approved for use on all O3B satellite networks. This O3B Ka-Band LNB offers full selectability between both O3B frequency bands. N-Type RF output connector
- O3B-A Frequency: 17.852 - 18.588 GHz
- O3B-B Frequency: 18.372 - 19.300 GHz
- L.O. Frequencies: 16.8 / 17.4 GHz
- IF Frequency O3B-A: 1052 - 1788 MHz
- IF Frequency O3B-B: 972 - 1900 MHz
- Noise Figure: 1.6 dB max.
- Conversion Gain: 58 dB (typical)
- Input Waveguide: WR42
9000HX-O3B-ABS LNB Outline Dimensions
- Noise figure 1.6 dB max.
- L.O. stability ±1.5 ppm in PLL
- Phase noise -70dBc @ 1KHz -80dBc @ 10KHz
- Reference phase noise -145dBc @ 1KHz
- Input return loss 10dB min.
- Output return loss 10dB min.
- Conversion gain 55dB (min), 58 dB (typ)
- Gain flatness over freq ± 1.5 dB in any 216MHz
- Output P1dB +5 dBm min IP3 +15 dBm min
- Spurious In band -60 dBc
- Out band -45 dBc
- Output impedance 50 Ω
- DC power +11 to +26V A-band +13V B-band +18V
- DC current 350 mA
- Input waveguide WR42 Dimensions 114(L) x 70(W) x 39(H) mm
- Weight 600g
- Operating Temperature -40 to + 60°C
Fully compatible and approved for use on O3B Satellite Networks
