NJRC New Japan Radio NJT5667 C-Band 2 Watt Block Upconverter (BUC)
5.85 to 6.425, Type-N or F connector input, WR137 Output

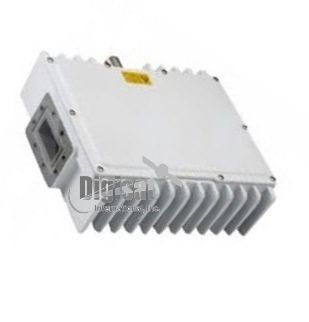

NJT5667 C-Band 2W BUC
The NJRC NJT5667 series BUC provides 33 dBm of highly efficient RF output power over 5.85 to 6.425 (standard C-Band) frequency ranges. This 2W C-Band BUC offers easy installation and operation, as well as exceptional reliability and RF performance.
Features
High Efficiency Output Power: P1dB: +33 dBm min. over temperature
Low Power Consumption: Power Consumption: 48 W
Small Size & Light Weight: Weight: 1.9 kg
LED Indicator
RoHS Compliance

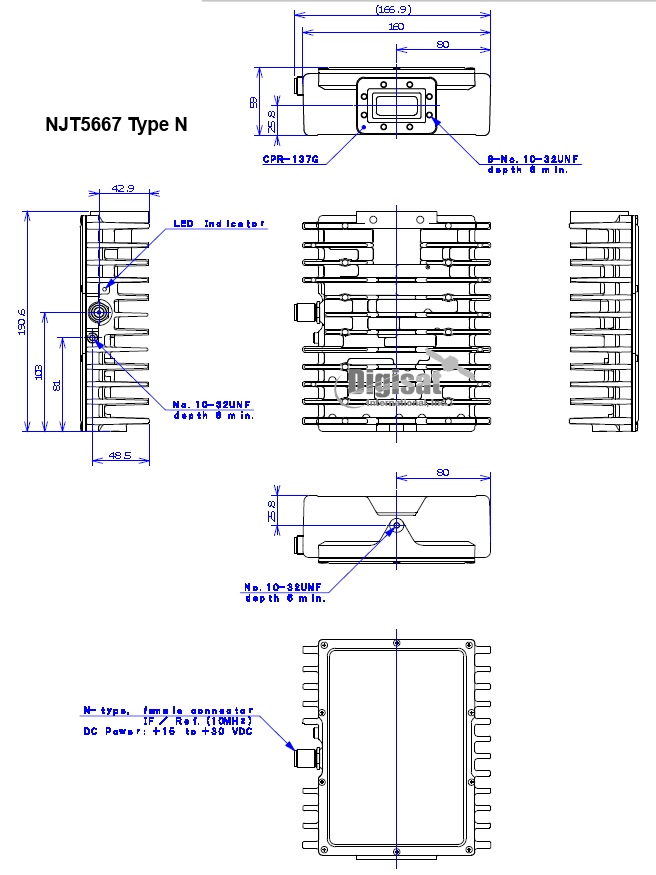

NJT5667 (Type-N Interface) Dimension Outline

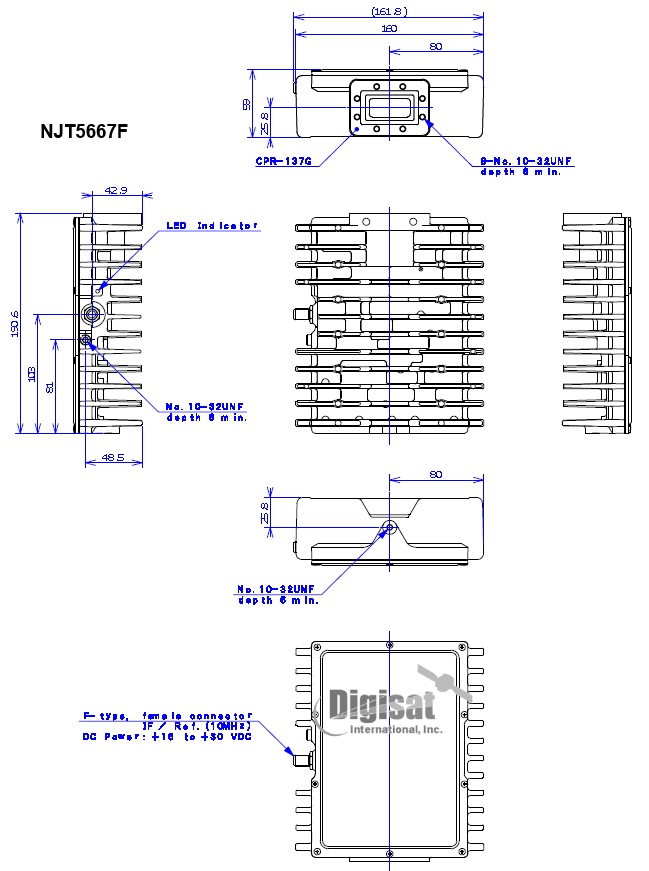

NJT5667F Dimensions
2013 & 2014 New Japan Radio C-Band BUC Product Family
|
Output Interface |
Waveguide, CPR137 (with Groove) |
|
|
Input Interface |
N-type, female (50 ohm) [Model No.: NJT5667/68/74N] |
|
|
|
F-type, female (75 ohm) [Model No.: NJT5667F/68F/74F] |
|
|
Output Power @ 1 dB G.C.P. |
+33 dBm min. over temperature |
|
|
Linear Gain |
58 dB nom. |
|
|
Requirement for External Reference |
[Frequency] |
10 MHz (sine-wave) |
|
|
[Input Power] |
-5 to +5 dBm @ Input port |
|
|
[Phase Noise] |
-120 dBc/Hz max. @ 100 Hz |
|
|
|
-130 dBc/Hz max. @ 1 kHz |
|
|
|
-140 dBc/Hz max. @ 10 kHz |
|
|
|
-150 dBc/Hz max. @ 100 kHz |
|
L.O. Phase Noise |
-60 dBc/Hz max. @ 100 Hz |
|
|
|
-70 dBc/Hz max. @ 1 kHz |
|
|
|
-80 dBc/Hz max. @ 10 kHz |
|
|
|
-90 dBc/Hz max. @ 100 kHz |
|
|
Receive Band Noise Density |
-87 dBm/4kHz max. |
|
|
Input V.S.W.R. |
2.0 : 1 max. |
|
|
Output V.S.W.R. |
2.0 : 1 max. |
|
|
Power Requirement |
+24 VDC (+15 to +30 VDC) |
|
|
Power Consumption |
33 W max. |
|
|
Mute |
Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal. |
|
|
LED Indicator |
GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal |
|
|
Temperature Range (ambient) |
-40 to +55 C (operating), -40 to +75 C (storage) |
|
|
Dimension & Housing |
190.6 mm (L) x 160 mm (W) x 59 mm (H) |
|
|
( without Interface Connectors ) |
[7.50" (L) x 6.30" (W) x 2.32" (H)] |
|
|
Weight |
1.9 kg [4.2 lbs] |
|
Remote VSAT sites, SCADA, M2M, Maritime communications, VSAT Networks
