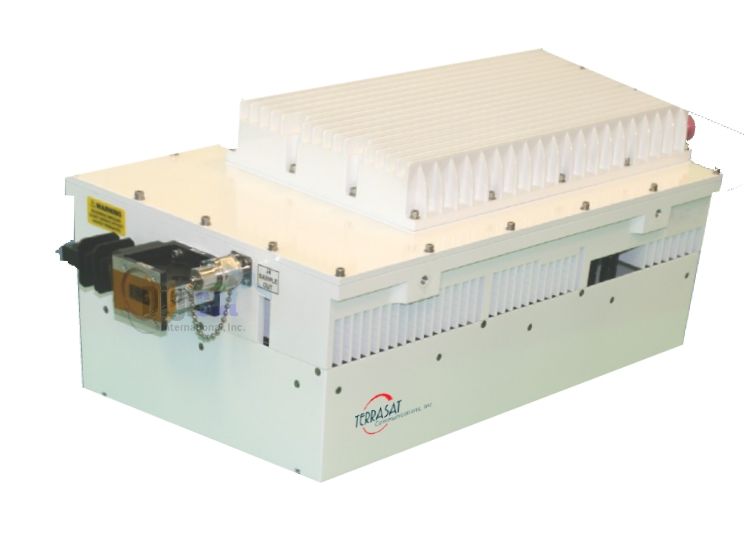

Terrasat IBUC High Power Ku-Band Intelligent Block Upconverter (12.75 - 14.50 GHz) 60W / 80W
Freq. band 1 range 14.00 to 14.50 GHz, IF 950 to 1750 Mhz, VSWR / Impedance 1.5:1 max / 50 Ohm, Complies with EN 301 428/430 and MIL-STD 188-164B
IBUC High Power Series Ku-Band Intelligent Block Upconverters
The Terrasat IBUC High Power Series Ku-Band is a highly advanced intelligent block upconverter with special custom features such as a low phase noise, built-in M&C and increased RF efficiency. Integrated fully automatic gain control and ALC comes standard on all BUCs.
The Ku-Band IBUC High Power Series also provides new interfaces for connecting you to extensive M&C facilities for etwork management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status.
IBUC comes with a complete set of diagnostic tools including:
10 MHz input detector Input voltage and current monitoring Transmit L‐band input level detector Transmit RF output level detector User configurable thresholds and alarms
Unique to the IBUC Ku-Band BUCs are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.
|
Frequency range |
RF |
IF |
|
|
Band 1 Std Ku |
14.00 to 14.50 GHz |
950 to 1450 MHz |
|
|
Band 2 Full Ku |
13.75 to 14.50 GHz |
950 to 1700 MHz |
|
|
Band 3 Low Ku |
12.75 to 13.25 GHz |
950 to 1450 MHz |
|
|
|
|
||
|
Input |
|
||
|
VSWR / Impedance |
1.5:1 max / 50 Ohm |
||
|
Input Connector |
Type N female (50 Ohm) |
||
|
Input Connector options |
Type F (75 Ohm), TNC (50 Ohm) |
||
|
Input power detector |
-55 to –20 dBm |
||
|
|
|
|
|
|
Gain |
|
|
|
|
Small Signal Gain (L-band to RF) with attenuator set to 0 dB |
|||
|
60 W |
79 dB min |
|
|
|
80 W |
80 dB min |
|
|
|
Attenuator range |
16 dB variable in 0.1 dB steps |
||
|
Gain flatness |
|
|
|
|
Full band |
|
4 dB p-p max |
|
|
36 MHz |
|
1.5 dB p-p max |
|
|
1 MHz |
|
0.25 dB p-p |
|
|
Gain variation over temperature |
|
||
|
Open loop |
|
3 dB p-p max |
|
|
With AGC |
|
1 dB p-p max |
|
|
|
|
|
|
|
RF Output |
|
|
|
|
Interface |
WR75 cover with groove |
||
|
VSWR |
1.3:1 max |
|
|
|
Rated output power (P1dB) |
|||
|
|
Band 1 & 3 |
Band 2 |
|
|
60 W |
+47.8 dBm min |
+47.5 dBm min |
|
|
80 W |
+49.0 dBm min |
+48.5 dBm min |
|
|
|
|||
|
IMD3 (2 carriers, 3 dB TOBO) -24 dBc max |
|||
|
Level stability with ALC ±0.5 dB |
|||
|
Output power detector range Rated power to –20 dB |
|||
|
Power reading accuracy ±1.0 dB max. |
|||
|
Spurious In Band |
-65 dBc |
|
|
|
Out of Band |
Complies with EN 301 428/430 and MIL-STD 188-164B |
||
|
Harmonics |
-50 dBc max. |
||
|
Output Noise Power Density |
|||
|
TX |
< -78 dBm/Hz |
|
|
|
RX |
< -145 dBm/Hz |
|
|
All VSAT Systems including fixed, mobile and transportable
