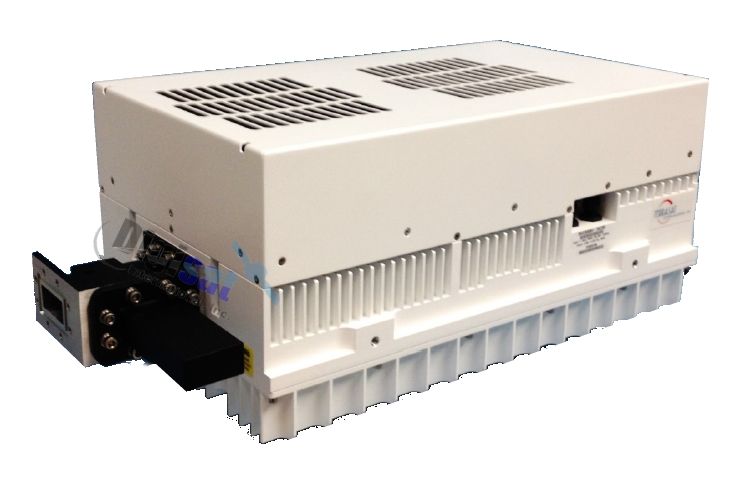

Terrasat X-Band IBUC R Series Intelligent Block Upconverter (7.9 - 8.4 GHz) 80W - 175W
Freq. range 7900 to 8400 MHz, IF 950 to 1450 MHz, Input Connector Type-N female (50 Ohm), RF Output Interface CPR-112G
IBUC R X-Band Intelligent Block Upconverter
The Terrasat X-Band IBUC R Series has all of the advanced IBUC features and the upgraded RJ45 M&C connector. This block upconverter offers significant benefits including low terminal cost, simple design and installation, superior RF performance and a reliable 1+1 configuration. Available in a wide range of RF power outputs including 80W, 100W, 125W, 150W and 175 watts.
The IBUC R Series also provides new interfaces for connecting you to extensive M&C facilities for network management or local access. This powerful M&C enables trouble‐free commissioning with easy, point‐and‐click installation/configuration, continuous verification of performance with time‐stamped alarm history and simplified monitoring of terminal status
IBUC-R comes with a complete set of diagnostic tools including:
10 MHz input detector
Input voltage and current monitoring
Transmit L‐band input level detector
Transmit RF output level detector
User configurable thresholds and alarms
Unique to the IBUC are internal AGC and ALC functions that satisfy demanding applications with stringent specifications.
IBUC-R Cable Diagram
Frequency range |
RF |
IF |
|
|
7900 to 8400 MHz |
950 to 1450 MHz |
|
Input |
|
||
VSWR / Impedance |
1.5:1 max / 50 Ohm |
||
Input Connector |
Type N female (50 Ohm) |
||
Input Connector options |
Type F (75 Ohm), TNC (50 Ohm) |
||
Input power detector range |
-55 to –20 dBm |
||
|
|
||
Gain |
|
|
|
Small Signal Gain (L-band to RF) with attenuator set to 0 dB |
|||
80W |
80 dB min |
|
|
100 W |
81 dB min |
|
|
125 W |
82 dB min |
|
|
150 W |
83 dB min |
|
|
175 W |
83 dB min |
|
|
Attenuator range |
30 dB variable in 0.1 dB steps |
||
Gain flatness |
|
|
|
Full band |
4 dB p-p max |
|
|
36 MHz |
1.5 dB p-p max |
|
|
1 MHz |
0.25 dB p-p |
|
|
Gain variation over temperature |
|
||
Open loop |
3 dB p-p max |
|
|
With AGC |
1 dB p-p max |
|
|
|
|
||
RF Output |
|
|
|
Interface |
CPR-112G |
||
VSWR |
1.5:1 max |
|
|
Rated output power (P1dB) |
|||
80 W |
+49 dBm min |
|
|
100 W |
+50 dBm min |
|
|
125 W |
+51 dBm min |
|
|
150 W |
+51.8 dBm min |
|
|
175 W |
+52.4 dBm min |
|
|
IMD3 (2 carriers, 3 dB TOBO) -27 dBc max |
|||
Level stability with ALC ±0.5 dB |
|||
Output power detector range Rated power to –20 dB |
|||
Power reading accuracy ± 1.0 dB max. |
|||
Spurious In Band |
-65 dBc |
|
|
Out of Band |
Complies with MIL-STD 188-164B |
||
Harmonics |
-60 dBc max. |
||
Output Noise Power Density |
|||
TX Band |
< -75 dBm/Hz |
||
RX Band (with RX reject filter) |
< -165 dBm/Hz |
||
|
|
||
Mute |
-70 dBc max. |
|
|
AM-PM Conversion |
< 3.0 deg/dB @ rated power |
||
Group Delay |
|
||
Linear |
0.03 ns/MHz |
|
|
Parabolic |
0.003 ns/MHz2 |
|
|
Ripple |
1 ns p-p over any 36 MHz |
Military and Government satellite communications systems remote tactical VSAT hub sites, UAV and secure live video streaming
