Anacom Inc ELSAT 50W Ku-Band BUC 32041
50 Watt RF output power, frequencies from 13.75 to 14.50 GHz, Input 950 to 1700 MHz in SEKu

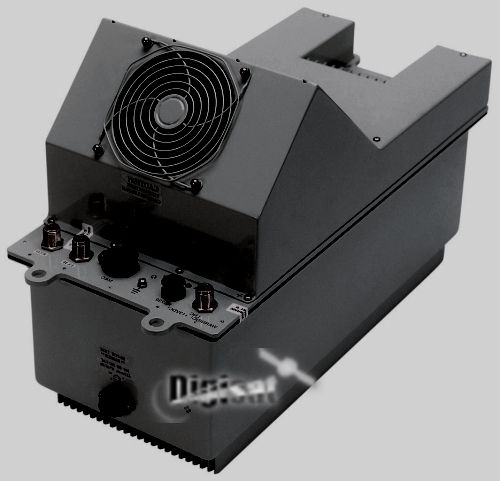

ELSAT 50 Watt Ku
Anacom Elsat 50 Watt BUC series of Ku-band ELSAT Block-Upconverters (BUC) are available in transmitter output levels up to 125 Watts, in single or redundant configurations. These BUCs are ruggedly built for continuous outdoor duty in all types of environments. They are especially suitable for SCPC, MCPC, and DAMA applications.
Flexible Applications
Rural Telecommunications expansion
Industrial networking
LAN and WAN extensions
Emergency link restoration
Remote surveillance
Broadcast Data distribution and collection
Point-of-sales systems
Video teleconferencing
Conventional voice traffic
Compact
The upconverter, power amplifier, monitor and control and power supply are included in a single enclosure and the only cabling required to the indoor equipment are IF cables. An ovenized, high stability crystal oscillator is used to lock the TX synthesizer. Additional temperature and aging compensation are provided by an onboard microprocessor.
All Ku-Band Satellite Communications Uplink/Transmit applications
