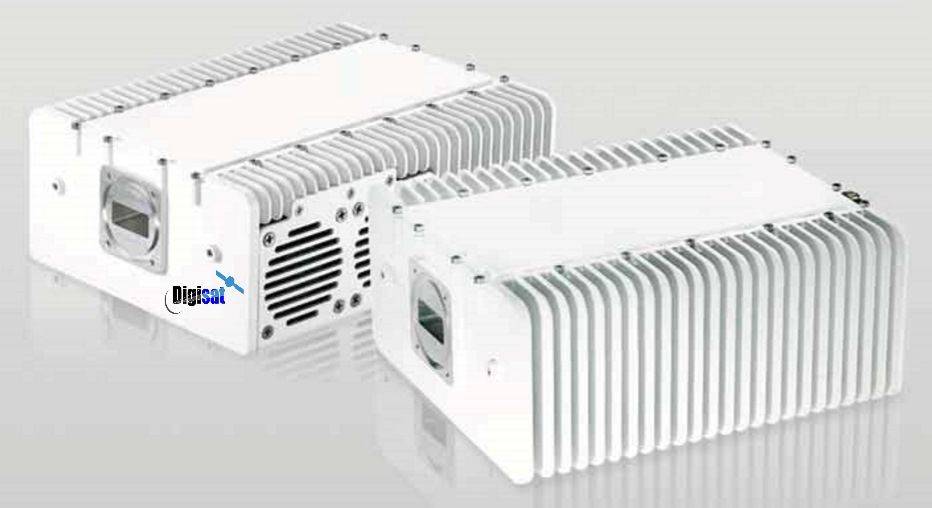

Agilis Satcom ALB150 50W X-Band Compact VSAT Block Upconverter (BUC)
Wide DC power input power from 18 to 60 Volts, Waterproof to IP65 standard, ideal for maritime, mobile, & SOTM applications
50 Watt ALB150 X-Band VSAT BUC
Agilis Satcom ALB150 50W X-Band Compact Military VSAT Block Upconverter (BUC) is an outdoor RF transmitter for satellite communication systems that's ideal for Milsatcom and government terminals that provide mobile & remote satellite communications services, as well as satcom on the move (SOTM) applications.
Proven Design
The ALB150 50 Watt BUC is field proven under harsh environment conditions, and can withstand temperatures ranging from -40ºC to +60ºC with up to 100% humidity. This 50 watt X-Band BUC has excellent thermal efficiency and consumes extremely low power. Innovative and efficient thermal design makes this BUC one of the lightest X-Band block Upconverters in the world.
Features
Compact and light weight
Feed mountable
Wide operating Temperature range -40 to +60 deg C
Wide input DC Voltage range 38V to 60V
Standard remote monitor & control through RS485
Optional Ethernet (SNMP & HTTP)
Excellent Linearity, Extremely Reliable
High power efficiency
Available for all X-Band frequency ranges
Excellent phase noise characteristics Low spurious
Forward power detection facility
Automatic fault identification & alarm generation
Automatic Temperature compensation feature
Redundancy ready RoHS compliant Waterproof with IP65 standard LED indicator for BUC status
Secure Communications Systems for Government and Military Operations
