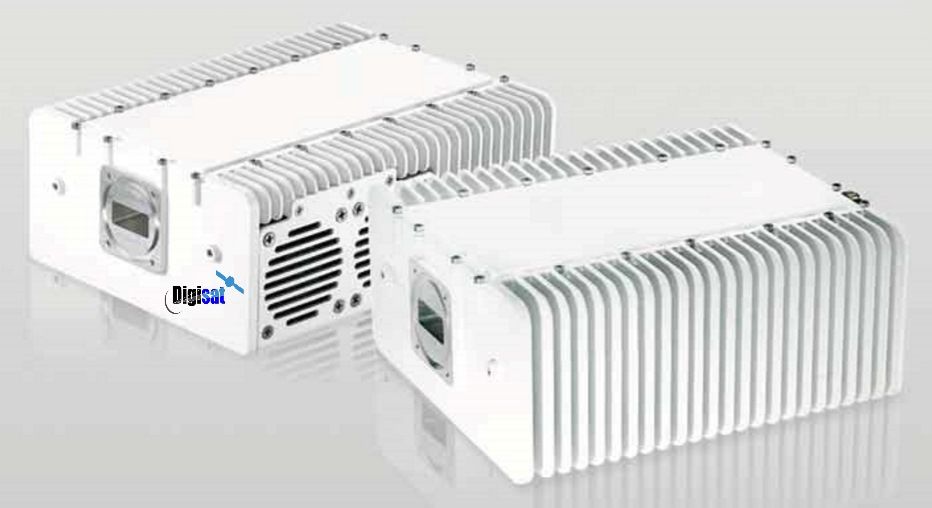

Agilis Satcom ALB150 25W X-Band Compact VSAT Block Upconverter (BUC)

Agilis Satcom ALB150 25W X-Band Compact VSAT Block Upconverter (BUC) is an outdoor RF transmitter for satellite communication systems that's ideal for military and government terminals that provide mobile & remote satellite communications services, as well as satcom on the move (SOTM) applications.

The ALB150 25 Watt BUC is field proven under harsh environment conditions, and can withstand temperatures ranging from -40ºC to +60ºC with up to 100% humidity. This 25 watt X-Band BUC has excellent thermal efficiency and consumes extremely low power. Innovative and efficient thermal design makes this BUC one of the lightest X-Band block Upconverters in the world.

Features:

Compact and light weight

Feed mountable

Wide operating Temperature range -40 to +60 deg C

Wide input DC Voltage range 38V to 60V

Standard remote monitor & control through RS485

Optional Ethernet (SNMP & HTTP)

Excellent Linearity

Extremely Reliable

High power efficiency

Available for all X-Band frequency ranges

Excellent phase noise characteristics Low spurious

Forward power detection facility

Automatic fault identification & alarm generation

Automatic Temperature compensation feature

Redundancy ready RoHS compliant

Waterproof with IP65 standard

LED indicator for BUC status
