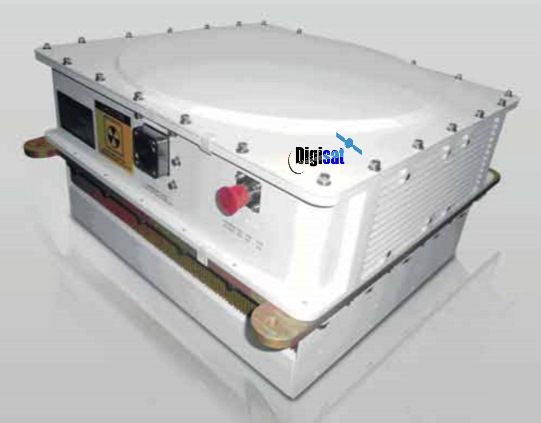

Agilis Satcom ALB128 100W Compact Ku-Band Block Upconverter (BUC)

ALB128 Ku-Band 100 Watt BUC

Agilis Satcom ALB128 100W Compact Ku-Band Block Upconverter (BUC) is an extremely compact outdoor transmitter for satellite communication systems. The ALB128 100W BUC has very high output power linearity and works well from -40ºC up to 60ºC. The BUC also has a wide input voltage range which allows it to work from 18V to 60V.

Easy Integration

The ALB128 series of slim BUCs offer the highest power/weight ratio. At a mere 27 Kgs this 100W BUC provides highly reliable performance over a wide temperature range. Agilis Ku-Band BUC is a compact design that comprises of Upconverter, Solid State Power Amplifier, Phase Locked Oscillator and DC-DC power converter. It employs L-Band IF interface to the indoor unit. Agilis ALB128 Ku-Band BUC is an ideal design suitable for broadband applications (such as DVB-RCS) in satellite IP networks.

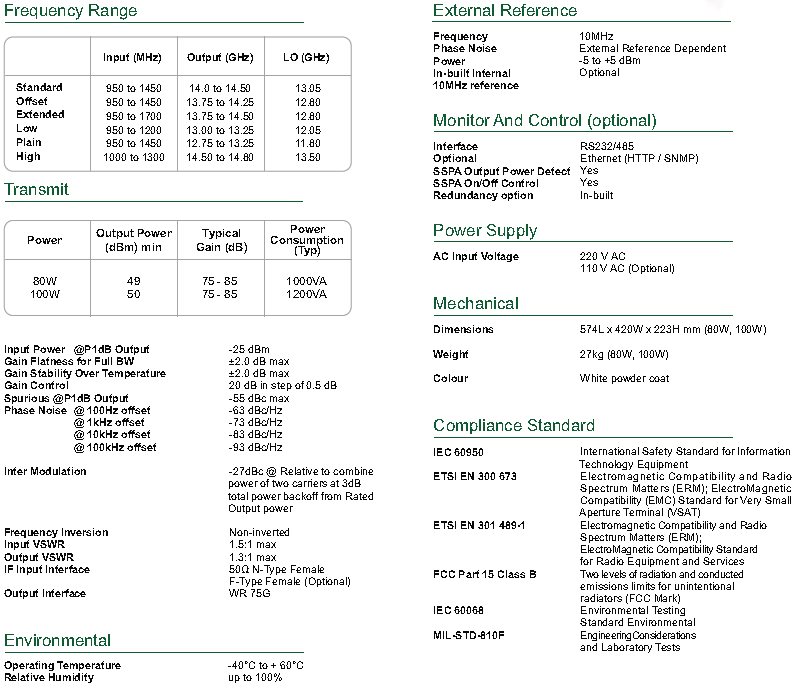

Features

 Available for Ku-Band frequencies from 12.75 to 14.80 GHz

 Direct antenna mount

 Wide operating temperature range from -40C to +60C

 Excellent phase noise characteristics.
