New Japan Radio NJRC NJT5123N 25W Ku-Band (14.0 to 14.5 GHz) Block Upconverter (BUC)
Operates in Ku-band frequencies from 14.00 to 14.5 GHz, Type-N input, M&C equipped
NJRC NJT5123N 25 Watt Ku-Band (14.00 to 14.50 GHz) Block Upconverter (BUC)

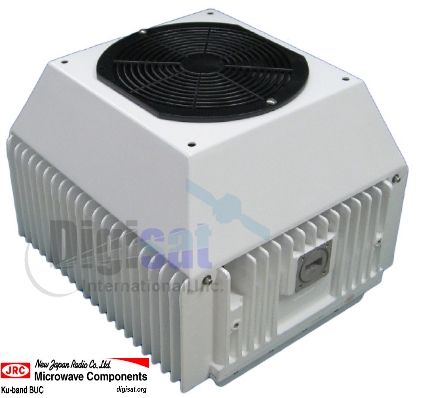

The NJRC NJT5123N series BUC is a compact high output outdoor block upconverter that provides up to +44.0 dBM (25 Watts) of Linear RF output power for use on Ku-band satellite networks (14.00 to 14.5 GHz). This rugged and advanced 25W Ku-Band BUC offers easy installation and setup on all VSAT antennas.
Features
High Efficiency Output Power (P1dB):
Type "N" RF Input
+44.0 dBm min. over temperature
Lower Power Consumption
Small Size & Light Weight
LED Indicator Equipped
RoHS Compliance
Outline Dimensions
Configuration Chart
|
Model No. |
RF Output |
Local Oscillator |
IF Frequency |
Output Power @ PldB |
IF Connector |
Power Supply |
Port for Voltage input |
M&C Interface |
|
NJT5123N |
14.0 to 14.5 GHz |
13.05 GHz |
950 to 1,450 MHz |
25W Linear (+44 dBm min.) |
N-type |
110 / 220 VAC |
MS Connector |
AnaIog |
|
NJT5123NO |
Analog/ Digital |
|
Item |
Specifications |
|
Output Interface |
Waveguide, WR75 (with Groove) |
|
Input Interface |
N-type, female (50 ohm) NJT5123N |
|
F-type, female (75 ohm) Model No.: NJT5123F |
|
|
Output Power @ 1dB G.C.P. |
+44 dBm min. over temperature |
|
Linear Gain |
70 dB nom. |
|
Power Requirement |
+24 VDC (+15 to +30 VDC) |
|
Power Consumption |
200 W max. |
|
Weight |
15.6 kg [30.7 lbs] |
Ku-Band Satellite Networks, VSAT systems, Maritime Communications, Satellite Internet Access Services
