SKU
TN-2
International Datacasting (IDC) Titan Two SD/HD MPEG-4 Video Encoder is available to buy in increments of 1

MPEG-4 4:2:2 and 3D capable, excellent for Broadcasters and Satellite News Gathering

Titan Two Professional MPEG-4 Video Encoder

This product has reached end of life and is no longer available.  Please contact us for a suitable replacement.

The International Datacasting (IDC) Titan Two SD/HD MPEG-4 Video Encoder is a high performance video encoding system that's built to tackle the unique challenges of professional outside broadcasting. The TITAN series combines updated core technology capable of delivering new levels of performance, with an overall product design based on nearly two decades of outside broadcast experience.

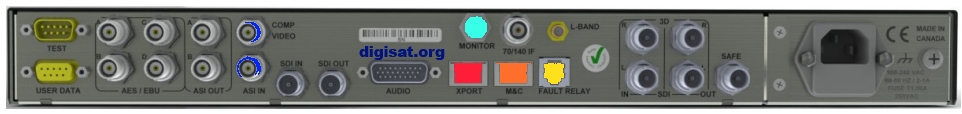

Tiernan Titan Two Input RF Interface

Easy to Use

Setting up a video encoder can be challenging at the best of times. Errors made while configuring encoders in the pressurized environment of a major sports or news event can prevent feeds from getting through. TITAN has been designed to enable operators who might not be experts in video compression, to set up contribution links quickly and easily. Extremely intuitive menus and front panel controls allow operators to define and enable compression and modulation parameters with only minimal training. For users who prefer Web based control, the built-in Browser interface is equally intuitive and easy to use.

Interoperability

Ensuring success in an outside broadcast transmission requires interoperability with both the content being sent, and the equipment used to receive it. The TITAN encoder handles a very wide range of news and sports formats: from PAL or NTSC; from 720p to 1080i, and all the way to 1080p60 or even 3D encoding. Combined with IDC’s commitment to open standards and full interoperability testing with the world’s leading decoder vendors, you can be sure that the TITAN encoder will work in any broadcast environment.

Flexibility

IDC understands that your needs may change over time. TITAN is available in two versions; TITAN One supports standard definition; while TITAN Two can support both standard and high definition. TITAN’s flexible, software license-based architecture allows you to purchase only those features required today, and upgrade to a more advanced feature set as your requirements evolve. With a highly flexible and functional modulator, and the ability to add features such as an internal multiplexer, BISS encryption, and advanced audio and video formats, the TITAN offers a future-proof investment.

Outstanding Compression Performance

While everything else is important, impressive audio and video quality is critical to successful broadcasting. Through its unique combination of ASIC and FPGA technologies, the TITAN delivers industry leading video and audio compression quality. Advanced features including: dynamic GOP; and scene change, fade, and skin tone detection, allow TITAN to deliver the absolute best picture possible using whatever bandwidth is available. The TITAN supports low delay modes for interview transmissions, and single camera feeds can take advantage of extended GOP structures to provide outstanding video quality at extremely low bit rates.

Cost Reduction

The combination of DVB-S2 modulation and TITAN’s advanced MPEG-4 AVC compression allow operators to deliver outstanding audio and video feeds at a much reduced satellite bandwidth cost. Most TITAN users report being able to provide HD contribution feeds in an equal or smaller bandwidth than they had previously used for SD transmissions. TITAN makes standard definition news operation at 1 MSymbol/s a reality.



Software License Core Features

Video Format (Select One)

SD (576i and 480i)
HD (1080i and 720p) + SD (576i and 480i)

Video Compression (Select at Least One)

MPEG-2 4:2:0
MPEG-2 4:2:2 + 4:2:0
MPEG-4 4:2:0

Hardware Configuration - Optional Features

3D Input Interface Module



3D Input Interface Module



DVB-S Modulator Module - IF



DVB-S Modulator Module - IF + L‐band



Software License Configuration - Optional Features

2 additional Audio Pairs (up to 8 pair maximum)
AAC-LC Advanced Audio Compression
HE-AAC Advanced Audio Compression
BISS Encryption
DVB-S2** support on Modulator Modules



Video & Audio Capabilities

Video Input

Analog SD (NTSC and PAL)
Digital SD (SMPTE-259M)
Digital HD (SMPTE-292M)

Audio Input

Analog: XLR — Up to 4 pairs
Digital: AES/EBU on BNC — Up to 4 pairs
Embedded: SMPTE-272M — Up to 8 pairs

Video Compression

MPEG-2 4:2:0 MP@ML/HL/HP
MPEG-2 4:2:2 HP@ML/HL
MPEG-4 4:2:0 (H.264 MP/HP to L4.1)
All Video Compression (100 kb/s ‐ 40 Mb/s)

Audio Compression

MPEG-1 Layer II (32, 48, 64, 80, 96, 112,
128, 160, 192, 224, 256, 320, 384 kb/s)
AAC-LC (16‐576 kb/s)
ACC-HE V1 and V2 (16‐128 kb/s)



Audio Pass

SMPTE 302M

VBI Support

Embedded Closed Cap

1080p50/60, 3D, MPEG-4 Video Broadcasting and Encoding
