Ultra Mini Compact Outdoor C-band Solid State Power Amplifier (SSPA) System

The Paradise Datacom Mini Compact Outdoor C-band SSPA System is designed for extreme environmental conditions and applications that require extremely high reliability. Along with the robust construction exists the highest power density in the industry. This allows solid state technology to be used in applications that have long been reserved for TWTAs.

Fiber Optic Interface

Paradise Compact SSPA Configuration



Integrated BUC

OperationTeledyne Paradise Datacom offers C-, X-, and Ku-Band amplifiers with an integrated L-Band Block Up Converter.

  • BUC includes Smart Reference Technology which enables the BUC to detect and switch to an externally supplied reference.
  • Optional internal high stability reference
  • Can lock to an externally supplied reference of 10 MHz or 50 MHz without modification.
  • Wide range of external reference power (-10 dBm to +5 dBm)
  • Accepts FSK monitor and control signal via IFL

Paradise Mini SSPA Remote Control Panel

Full Remote M&C Capability

The RCP2-1000 is a Remote Control Panel for the Mini Compact Outdoor SSPA. It only requires 1RU of cabinet space and provides and identical local interface as exists on Teledyne Paradise Datacom Indoor Rack Mount amplifiers.

The controller communicates with the outdoor amplifier via a RS-485 link. The controller then provides a wide range of interface capability including Ethernet communications. The following communication links are available at the Remote Control Panel:

  • RS-232 or Addressable RS-485 Serial Data
  • Discrete (Parallel) Interface - Form C contact outputs & Opto Isolated Inputs
  • Ethernet Interface - A full compliment of Ethernet Communications including UDP, SNMP, and an internal web browser.
  • Local (Manual) interface via front panel LCD display

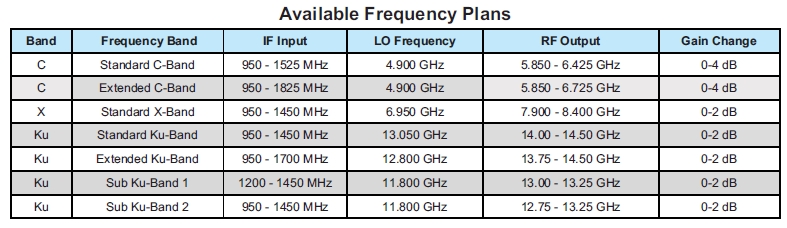

Mini Compact SSPA Frequencies

At less than 24.5 lbs. (11.2 kg), and 19.6 lbs. (8.9 kg) for the 80W Ku-Band units, and only slightly larger than a lunch box, this family of SSPAs is available in the following output power levels:

C-Band: 75W, 100W, 200W

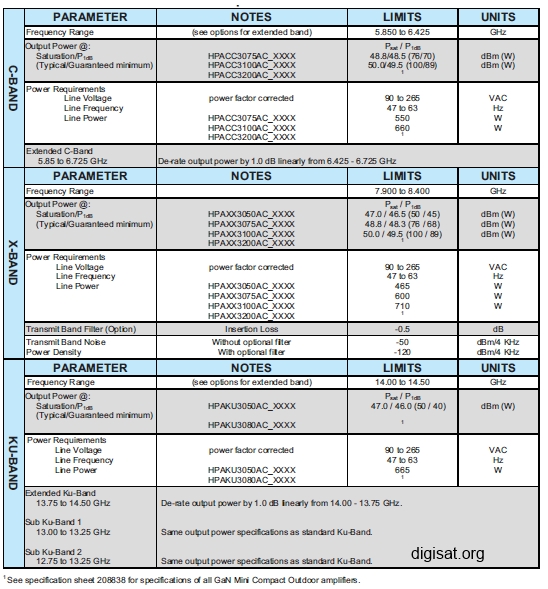

Teledyne Paradise Datacom Mini Compact SSPA Specifications

C-Band satellite frequency amplification, 75W, 100W, 200W
