LSC64-1000P
Quintech Electronics LSC64 1000P 64-Way Passive Splitter/Combiner (5-1000 MHz) is available to buy in increments of 1

Operates from 5 to 1000 MHz

LSC64 1000P 64-Way Passive Splitter/Combiner (5-1000 MHz)

 The Quintech LSC64 1000 F1C000 is a commercial quality 64-way splitter/combiner that meets strict level and match specifications achieved through the use of Quintech's proprietary stripline overlay and SMT technology. It operates over the 5-1000 MHz frequency range and enables the splitting or combining of RF signals with repeatable performance over the entire frequency range and across all I/O ports.

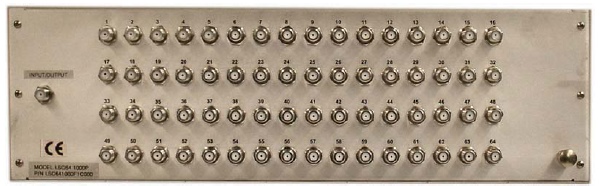

LSC64 1000P Splitter Combiner


RF Performance

The LSC 1000P Series are commercial quality passive broadband RF power splitters / combiners that meet strict level, match, and loss specifications achieved through the use of Quintech’s proprietary microstrip and SMT technology. They operate over the 5-1000 MHz frequency range and enable the splitting or combining of RF signals with repeatable performance over the entire frequency range and across all I/O ports. The LSC 1000P Series are commercial quality passive broadband RF power splitters / RF power combiners that meet strict level, match, and loss specifications achieved through the use of Quintech’s proprietary microstrip and SMT technology. They operate over the 5-1000 MHz frequency range and enable the splitting or combining of RF signals with repeatable performance over the entire frequency range and across all I/O ports

Key Features

Convenient, centralized rack mount designs improve cable management.

Microstrip design provides better performance and reliability.

Larger configurations eliminate cascaded combiners for better performance.

Active (zero loss) combiners allow for ease in RF budget design.

Custom configurations for optimization of rack space and increased flexibility.

Greatly improves cable management and aesthetics by allowing for easy access to cable routing and easing identification of cabling.

Reduces cable connector failures by eliminating the need for frequent manual connects/disconnects.

Frequency:

 5-1000 MHz

Impedance:

 75 Ω

Insertion Loss:

 23 + 1 dB

Frequency Response:

 + 2 dB

Isolation:

 -20 dB

Return Loss:

 12 dB

RF Connectors:

Type F, 75 Ω

Mechanical:

1 RU (1.75" H x 19" W x 6.5" D)

Weight:

14.00 lbs. gross (boxed), 10.50 lbs. net

Certifications:

 CE

5 to 1000 MHz RF signal distribution, IF-Band Satcom Systems
