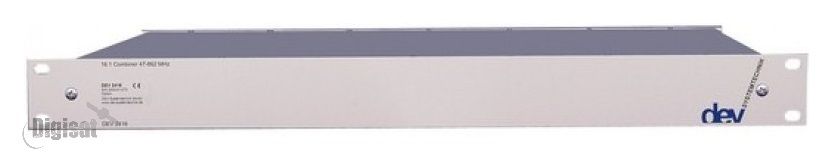

DEV 2464 Passive CATV-Band Splitter
DEV 2464 PASSIVE CATV-BAND SPLITTER
The DEV 2464 passive splitter series provides the possibility to split to 4, 8 or 16 outputs within theCATV-Band. The low slope, the high port-to-port isolation and the very low difference in insertion loss between the paths makes it a high quality tool in head-end installations.
FEATURES
- 10…1006 MHz
- Low Slope
- High Port-to-Port Isolation
- Very low difference in Insertion Loss between Paths
- Monitor Port
- 75 Ohm F (f)
BENEFITS
- High Quality passive Splitter for Cable-TV Installations
- Due to low Slope no significant decrease in Signal Quality
Configurations
DEV-2404 4:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
DEV-2405 1:4 Passive Splitter; 10…1006 MHz; 75 Ohm, F (f)
DEV-2408 8:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
DEV- 2409 1:8 Passive Splitter; 10…1006 MHz; 75 Ohm, F (f)
DEV-2416 16:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
DEV-2417 1:16 Passive Splitter; 10…1006 MHz; 75 Ohm, F (f)
DEV-2424 24:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
DEV-2428 2*8:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
DEV-2432 32:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
DEV-2441 16*1:2 Passive Splitter; 10…1006 MHz; 75 Ohm, F (f)
DEV-2442 8*1:4 Passive Splitter; 10…1006 MHz; 75 Ohm, F (f)
DEV-2443 4*1:8 Passive Splitter; 10…1006 MHz; 75 Ohm, F (f)
DEV-2444 2*1:16 Passive Splitter; 10…1006 MHz; 75 Ohm, F (f)
DEV-2461 16*2:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
DEV-2462 8*4:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
DEV-2463 4*8:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
DEV-2465 6*4:1 Passive Combiner; 10…1006 MHz; 75 Ohm, F (f)
