Teledyne Paradise Datacom RF2 Series Ku-Band GaAs HEMT Low Noise Amplifier

LNB Plate

Paradise Datacom Redundant Low Noise Block Downconverter (LNB) Plate

X-Band Series RF7 LNA

Paradise Datacom RF7 Series X-Band (7.25 to 7.75 GHz) Low Noise Amplifier (LNA)

Login To See Price
SKU
RF2-LNA
Teledyne Paradise Datacom RF2 Series Ku-Band GaAs HEMT Low Noise Amplifier is available to buy in increments of 1

Noise Temperatures as low as 65K, covers Ku-Band frequencies from 10.70 to 13.00 GHz

RF2 Series Ku-Band Low Noise Amplifier (LNA)

The RF2 Series Ku-Band LNA offers premium performance and reliability in the most versatile package available for a Ku-Band LNA. The latest technology in GaAs HEMT devices produces the lowest possible noise temperatures in an uncooled LNA. In addition, the RF2 Series LNA is backed by a 36-month warranty and by more than 30 years experience in the design of high performance communications amplifiers.

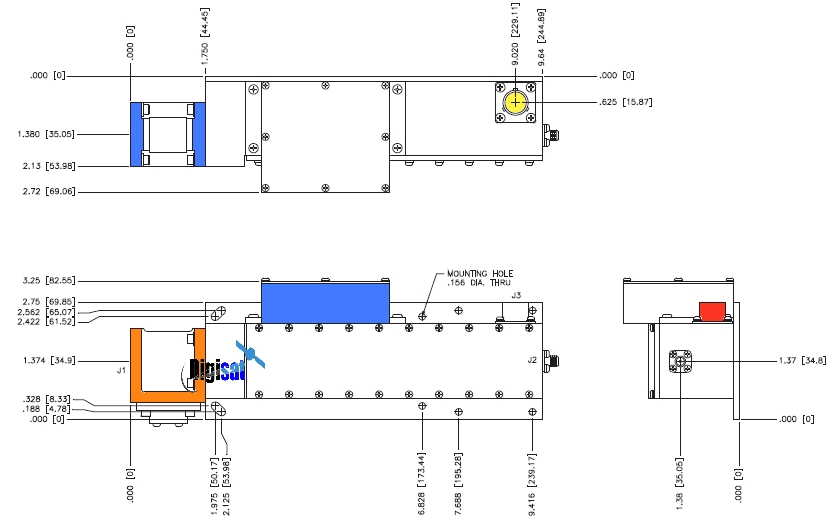

Paradise Datacom RF2 Ku-Band LNA Outline Dimensions


Weather Resistant Housing

The performance of the RF2 Series LNA is matched by a full range of features chosen with the communication system designer in mind. From the comp act weatherproof housing to the standard combination of RF cable and circular connector DC input, the RF2 Series LNA is ready for integration into your system.

Teledyne Paradise Datacom RF2 Ku-Band LNA Specifications

Supports Ku-Band frequencies from 10.70 to 13.00 GHz
