Paradise Datacom CRM Series 3RU Indoor Rack Mounted SSPAs is available to buy in increments of 1

Highly efficient, compact size, Option for built in BUC. S, X, C and Ku-Band Configurations

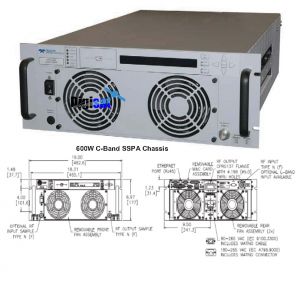

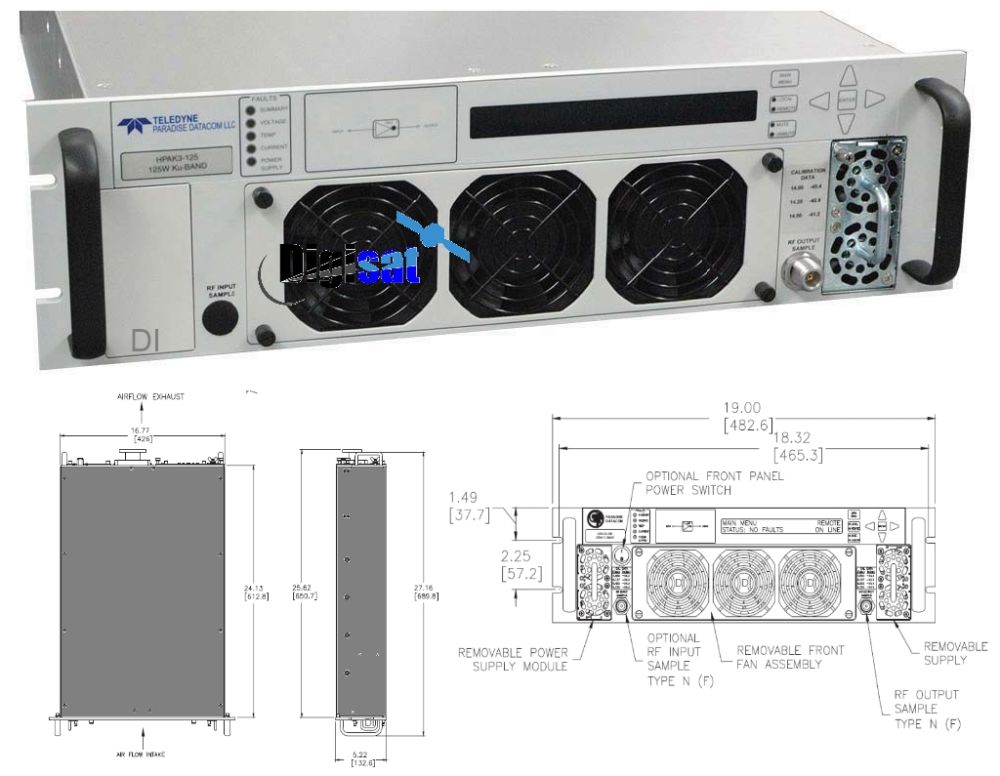

CRM Series 3RU Indoor Rack Mounted SSPA

Paradise Datacom 3RU CRM Series Compact Rack Mount Solid State Power Amplifiers represent the latest in High Power Microwave Amplifier Technology. The SSPA chassis achieves the highest power density in the industry along with enhanced maintainability.

Simplified Maintenance

The power supply, fan trays and controller card connector plate are all removable for easy maintenance. At 24” deep, and only 3RU high, this chassis is perfect for SNG applications, or other configurations where rack space is at a premium.

The SSPA front panel features an easy-to-navigate display and menu structure. Dedicated LEDs are provided for alarm condition indication.

Built-In M&C

Teledyne Paradise Datacom rack mount power amplifiers have a wide range of monitor and control functionality, including:

RS-232/RS-485 (4-wire) serial communication

Ethernet port supporting UDP, SNMP and web browser-based control

Form C contacts for output monitor ports and opto isolated input ports

Free Windows M&C software

Variety of third party M&C drivers available

Multiple Frequency Configurations

The CRM Series 3RU amplifiers are available in the following frequency and power configurations:

Up to 300W S-Band

Up to 300W C-Band

Up to 200W X-Band

Up to 150W Ku-Band

Features

  • Removable Power Supply, Fan Tray and Monitor & Control Assembly
  • Ethernet Port x RF Output Sample Port (-40 dB)
  • RF Gain Adjustment 55dB - 75dB
  • CE Compliant
  • Universal, Power Factor Corrected Power Supply
  • Built-in 1:1 Redundancy Control

Options

  • Remote Control Panel
  • L-Band Input operation
  • Reflected Power Monitor
  • Input Sample Port
  • 1RU Redundant Power Supply
  • Exhaust Duct Adapters
  • Redundant Systems
  • Phase Combined Systems

PARAMETER

NOTES

LIMITS

UNITS

Gain Gain Flatness Gain Slope Gain Variation vs. Temperature Gain Adjustment Resolution

Adjustable range full band (All except Extended C-Band) Extended C-Band units per 40 MHz (C, X, Ku) per 10 MHz (S-band) 0°C to +50°C in 0.1 dB steps

55-75 ±1.0 ±1.5 ±0.3 ±0.2 ±1.0 20

dB dB dB dB/40 MHz dB/10 MHz dB dB

Intermodulation Distortion

3dB back off relative to P1dB

-25

dBc

AM/PM Conversion

(@ rated P1dB) (@P1dB-3dB)

3.5 1.0

°/dB °/dB

Spurious Harmonics

(@ rated P1dB) (@ rated P1dB-3dB) (C-,X-,Ku-bands) (@ rated P1dB-3dB) (S-Band)

-70 -50 -40

dBc dBc dBc

Input/Output VSWR

All units except Extended C-Band Extended C-Band units

1.30:1 1.50:1



Noise Figure

at maximum gain

12

dB

Group Delay

Linear Parabolic Ripple

0.01 0.003 1.0

ns/MHz ns/MHz2 ns p-p

Noise Output

TX Band (S, C-, X- or Ku-Band) RX Band (C- or Ku-Band) RX Band (X-Band) RX S-Band see page 2

-75 -150 -100

dBW/4 KHz dBW/4 KHz dBW/4 KHz

Residual AM Noise

0 - 10 KHz 10 KHz - 500 KHz 500 KHz - 1 MHz

-45 -20 (1.25 + log F) -80

dBc dBc dBc

Residual Phase Noise

Offset frequency from carrier 10 Hz 100 Hz 1 KHz 10 KHz 100 KHz 1 MHz

-90 -100 -110 -120 -125 -130

dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz

News Gathering Vehicles, Satellite Teleports, VSAT Hubs, Earth Stations, Government Communications
