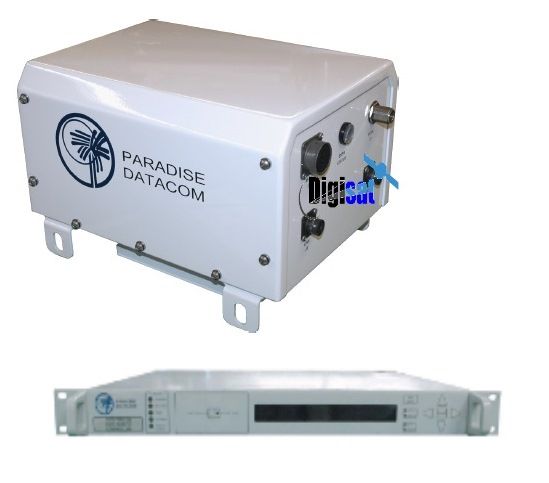

Teledyne Paradise Datacom 80W Ku-Band Gallium Nitride (GaN) Ultra Mini Compact Outdoor SSPA
Gallium Nitride for extremely high Ku-Band power density and reliability, 80 Watt Ku-Band RF Output
80W Ku-Band Gallium Nitride (GaN) Ultra Mini Compact Outdoor SSPA
The Teledyne Paradise Datacom 80W Ku-Band Gallium Nitride Mini Compact Outdoor Solid State Power Amplifier (SSPA) is built for extreme environmental conditions and high reliability operation. Along with the robust construction exists the highest power density in the industry. This allows solid state technology to be used in applications that have long been reserved for TWTAs.
Gallium Nitride amplifiers offer considerably better performance than conventional GaAs solutions. GaN offers better efficiency than other conventional amplifier technologies and also exhibits exceptional gain and power over frequency.
Weighing less than 24.5 lbs. (11.2 kg), and 19.6 lbs. (8.9 kg) for the 80W Ku-Band units, and only slightly larger than a lunch box, this family of GaN SSPAs is available in the following output power levels:
C-Band: 200 W
X-Band: 200 W
Ku-Band: 80 W
GaN SSPA Specifications:
|
C-BAND |
PARAMETER |
NOTES |
LIMITS |
UNITS |
||
|
Frequency Range |
(see options for extended band) |
5.850 to 6.425 |
GHz |
|||
|
Output Power @: Psat / Two-Tone PLinear (Typical / Guaranteed minimum) |
HPACC3200AC_XXXX |
Psat / PLinear 53.0 / 50.0 (200 / 100) |
dBm (W) |
|||
|
Power Requirements Line Voltage Line Frequency Line Power |
power factor corrected HPACC3200AC_XXXX @ Psat HPACC3200AC_XXXX @ PLinear |
90 to 265 47 to 63 1100 880 |
VAC Hz W W |
|||
|
Extended C-Band 5.85 to 6.725 GHz |
De-rate output power by 1.0 dB linearly from 6.425 - 6.725 GHz |
|
||||
|
X-BAND |
PARAMETER |
NOTES |
LIMITS |
UNITS |
||
|
Frequency Range |
7.900 to 8.400 |
GHz |
|
|||
|
Output Power @: Psat / Two-Tone PLINEAR (Typical / Guaranteed minimum) |
HPAXX3200AC_XXXX |
Psat / PLinear 53.0 / 50.0 (200 / 100) |
dBm (W) |
|||
|
Power Requirements Line Voltage Line Frequency Line Power |
power factor corrected HPAXX3200AC_XXXX @ Psat HPAXX3200AC_XXXX @ PLinear |
90 to 265 47 to 63 1120 900 |
VAC Hz W W |
|||
|
Transmit Band Filter (Option) |
Insertion Loss |
-0.5 |
dB |
|||
|
Transmit Band Noise Power Density |
Without optional filter With optional filter |
-50 -120 |
dBm/4 KHz dBm/4 KHz |
|||
|
KU-BAND |
PARAMETER |
NOTES |
LIMITS |
UNITS |
||
|
Frequency Range |
(see options for extended band) |
14.00 to 14.50 |
GHz |
|||
|
Output Power @: Psat / Two-Tone PLINEAR (Typical / Guaranteed minimum) |
HPAKU3080AC_XXXX |
Psat / PLinear 49.0 / 46.0 (80 / 40) |
dBm (W) |
|||
|
Power Requirements Line Voltage Line Frequency Line Power |
power factor corrected HPAKU3080AC_XXXX @ Psat HPAKU3080AC_XXXX @ PLinear |
90 to 265 47 to 63 730 585 |
VAC Hz W W |
|||
|
PARAMETER |
NOTES |
LIMITS |
UNITS |
|
Gain Gain Flatness Gain Slope Gain Variation vs. Temp. Gain Adjustment |
range full band (C-,X-,Ku-bands) full band (Extended C-Band, Extended Ku-Band) per 40 MHz (C-,X-,Ku-bands) -40 °C to +55 °C 0.1 dB resolution |
55-75 ± 1.0 ± 1.5 ± 0.3 ± 1.5 20 |
dB dB dB dB/40 MHz dB dB |
|
Intermodulation Distortion |
@ rated PLinear |
-25 |
dBc |
|
AM/PM Conversion |
@ rated PLinear |
2.0 |
o/dB |
|
Spurious (SSPA only) Harmonics (SSPA only) |
@ rated PLinear |
-60 -50 |
dBc dBc |
|
Input/Output VSWR |
All units except Extended C-Band Extended C-Band units |
1.30:1 1.50:1 |
|
|
Noise Figure |
At maximum gain (C-,X-,Ku-bands) |
10 |
dB |
|
Group Delay (per 40 MHz segment) |
Linear Parabolic Ripple |
0.01 0.003 1.0 |
ns/MHz ns/MHz2 ns p-p |
|
Transmit Band Noise Output Power Density |
Tx Band Rx Band (C-,X-,Ku-bands) |
-75 -150 |
dBW/4 KHz dBW/4 KHz |
|
Residual AM Noise |
0 - 10 KHz 10 KHz - 500 KHz 500 KHz - 1 MHz |
-45 -20 (1.25 + log F) -80 |
dBc dBc dBc |
|
Phase Noise (SSPA only) |
Offset frequency from carrier 10 Hz 100 Hz 1 KHz 10 KHz 100 KHz 1 MHz |
-90 -100 -110 -120 -125 -130 |
dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz dBc/Hz |
|
RF Power Detector |
Psat to (Psat - 20 dBm) |
20 ± 1.0 |
dBm |
Flyaway and Transportable VSAT Antennas, Portable Satcom Systems, Comms on the Move (COTM), Maritime Communications
