Novelsat NS3000 NS3 Modulation L-Band Satellite Modem
Input: 950-1750MHz (optional up to 2150MHz) in 1Hz steps, Power level: -30/0 dBm ±0.1dB, Return Loss: > 12dB
NS3000 NS3 Modem
The Novelsat NS3000 is the fastest satellite modem achieving data rates of up to 716Mbps. It is also the modem which presents the most compelling ROI in the market. The NS3000 incorporates innovative NS3 state-of-the-art technology for satellite communication. It interfaces directly with IP infrastructure via a Gigabit Ethernet interface.
Outstanding Support for Customer Requirements
The NS3000 offers several hardware and software options to accommodate a wide range of customer needs. It supports point-to-point as well as point-to-multi point links while supporting ULE, GSE and Novelsat’s high-efficiency NSPE encapsulation schemes.
RF Performance
The NS3000 offers a dramatic performance upgrade over DVB-S2 and any other similar equipment available in the market. This high performance is achieved owing to the utilization of NS3 technology coupled with the capability of transmitting a 72MHz single carrier. In addition, the NS3000 incorporates revolutionary NPEC (NovelSat Proprietary Echo Cancelation) technology and a built-in receiver equalizer that further improve performance over saturated channels.
High Data Rates
Using the NS3000, customers achieve the highest data rates of up to 716Mbps while reducing dish and HPA sizes and/or required satellite leased bandwidth. The NS3000 offers a fully Integrated IP solution incorporating routing capability. Further utilization
of allocated bandwidth can be accommodated using NovelSat optimized ACM mode. The NS3000 comes with IF/extended L-Band input/output interfaces and can support BUC and LNB, offering a compact and cost effective solution in a space-saving 1U
package.

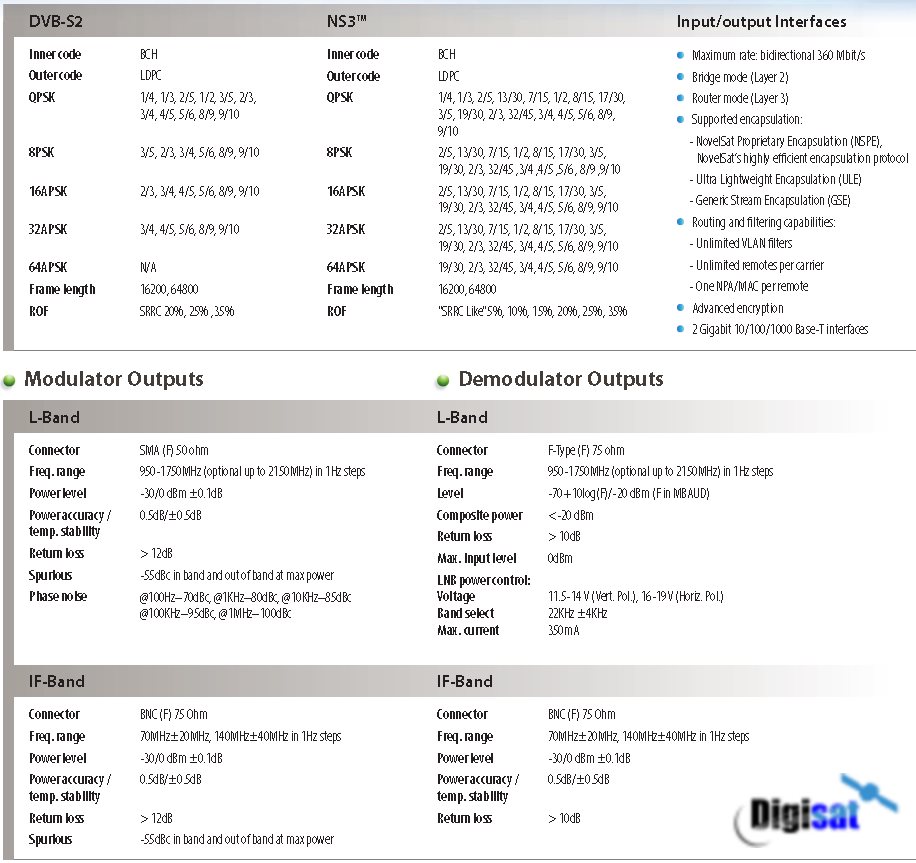

Features
Compatible with the innovative NS3 protocol
Data rate of up to 716Mbps (bidirectional 358Mbps) with built-in ECO Cancellation
Up to 70Msymbols/sec
Optimized ACM mode
Non-Linear Processing mode for saturated signals
IP routing
TCP acceleration
Traffic compression
ULE/GSE/NSPE support
DVB-S2 compliant
QPSK, 8PSK, 16APSK, 32APSK, 64APSK
Optional 10MHz reference (In/Out)
Extended L-Band 950MHz-2150MHz
L-Band monitoring output
Redundant Gigabit Ethernet interface
Redundant power supply
Modulator output connector: SMA, Input 950-1750MHz (optional up to 2150MHz) in 1Hz steps, Spurious -55dBc in band and out of band at max power
