Norsat XT1000HF Ext. Referenced Dual-PLL X-Band LNB (7.25- 7.75 GHz) F-Connector
X-Band Frequency: 7.25 to 7.75 GHz, L.O. Stability: Dual PLL, Phase Locked to external reference, RF Output: F-connector, 0.7 dB Noise Figure
The Norsat XT1000HF X-Band Dual PLL Low Noise Block Converter provides high stability and outstanding RF performance over X-Band satellite frequencies from 7.25- 7.75 GHz. The XT1000HF X-Band LNB features a highly stable externally referenced Dual PLL local oscillator. L-Band RF output configuration is a 75-ohm F-connector. X-Band RF frequency input is accomplished via a precision WR112 grooved waveguide flange.
Local oscillator frequency: 6.30 GHz
Noise Figure: 0.7 dB

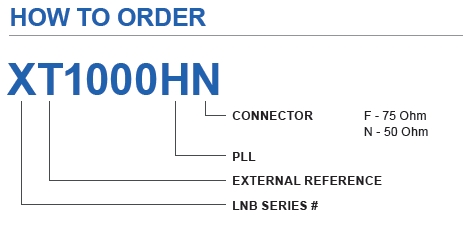

Norsat XT1000HF Series LNB Ordering Information
Outline Diagram
TYPICAL SPECIFICATIONS
Noise Figure: 0.7 dB
L.O. stability ±10 kHz in PLL mode if no 10MHz Ext. Ref. present
Phase noise (SSB): -75 dBc/Hz at 1 kHz, -85 dBc/Hz at 10 kHz, -95 dBc/Hz at 100 kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Conversion gain 60 dB
Output P1dB 10 dBm
Power requirements +15 to +24 V supplied through center conductor of IF cable
Current drain 270 mA
Input Waveguide WR112
Dimensions 137 (L) x 70 (W) x 59 (H) mm (5.4 x 2.8 x 2.3 in)
Weight 600 g / 21.1 oz
Temperature Range -40°C to +60°C
External Ref Frequency 10 Mhz (sine wave) -10 to 0 ohm
Frequency Bands Available
|
Input frequency (GHz) |
7.25 to 7.75 |
|
L.O. frequency (GHz) |
6.30 |
|
Output frequency (MHz) |
950 to 1450 |
Dual PLL, Government & Military Communications Systems, Milsatcom Terminals, Mobile Tactical VSAT Systems, Mission Critical Satcom
