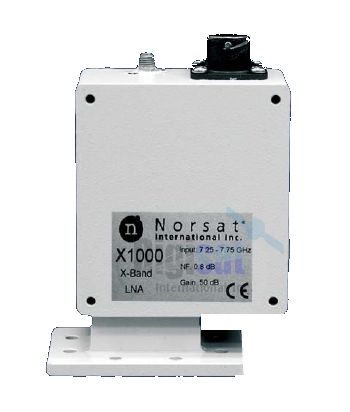

Norsat LNA-X1000N X-Band LNA (7.25 to 7.75 GHz) Type-N RF Output

Norsat LNA-X1000F X-Band Low Noise Amplifier

Norsat LNA-X1000F X-Band LNA (7.25 to 7.75 GHz) F-Connector RF Output

Norsat 9000 Series Ka-Band LNA-9000CF

Norsat LNA-9000CF Ka-Band LNA (20.20 - 21.20 GHz) F-Connector Output

$2,376.00
SKU
NST-LNAX1000N
Norsat LNA-X1000N X-Band LNA (7.25 to 7.75 GHz) Type-N RF Output is available to buy in increments of 1

Rx Frequency: 7.25 - 7.75 GHz, Noise figure 0.8 dB, Input Waveguide CPR-112G, Gain flatness 4 dB p - p max, Type-N RF output connector

LNA-X1000N Series X-Band Low Noise Amplifier

The Norsat LNA-X1000N X-Band LNAs offer Standard and Extended X-Band frequencies from 7.25 - 7.75 GHz. Type-N RF output connector with power via a separate DC connector or via RF output

Key Features

Features Small size, ideal for feed mounting

Features RoHS Compliant

Highly Versatile

Norsat X-Band LNAs are ideal for applications such as:

Features Military and Government Satcom

Features Fixed Earth Station Antennas

Features Mobile Terminals

Features High stability systems

Features Unmanned ISR (intelligence, surveillance and reconnaissance)

Outline Dimensions

 Norsat LNA-X1000N X-Band Low Noise Amplifier Outline Dimensions

Specifications

arrow Type-N connector RF Output

arrow Frequency 7.25 to 7.75 GHz

arrow Noise figure 0.8 dB

arrow Input VSWR 2.0 : 1

arrow Output VSWR 2.0 : 1

arrow Output P1dB +10 dBm

arrow Dimensions 106 (L) x 77 (W) x 47 (H) mm

arrow Weight 550g

arrow Input Waveguide CPR-112G

arrowDC Power MS3112E10-6P

arrow Gain 50 dB

arrow Gain flatness 4 dB p - p max

arrow Power requirements +15 to +24 V

arrow Current drain 150 mA

arrow Temperature range -30°C to +60°C

How to Order

Norsat LNA-X1000F X-Band Low Noise Amplifier Configuration Chart

The X1000N series LNAs offer Standard and Extended X-Band frequencies from 7.25 - 7.75 GHz. Special custom order units are available from Digisat.
