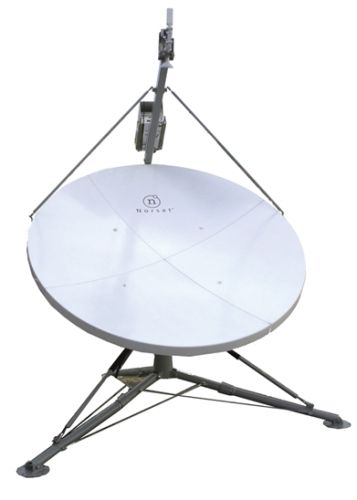

Norsat International SigmaLink Flyaway VSAT Terminals
1.8 or 2.4 Meter, available with pointing box (SAA) and/or baseband configuration
SigmaLink Flyaway VSAT SNG & Internet System
The Norsat SigmaLink offers a quick set up mobile satellite platform that can be set up in less than 15 minutes without tools. The Norsat Sigma Link comes complete with pointing tools to aid in satellite alignment. The sophisticated Link Control software together with an easy-to-use pointing box, or Satellite Acquisition Assistant (SAA), makes alignment and acquisition easy even for novice operators. To further simplify operation in the field, a full range of settings can be pre-configured in user selectable profiles before the SigmaLink is sent out on an assignment.
Remote Broadband Access
The Norsat SigmaLink was designed from the ground up to deliver broadband data connectivity in a transportable, rugged and easy-to-use package.
Multiple Sizes
The terminal can be easily configured to meet varying needs; it includes a 1.8m or 2.4m antenna; interchangeable Ku/X/C band capability; various power amplifiers options; positioner; controller; pointing tools; and different system configurations (pointing box and/or baseband configuration). Norsat is also the first in the industry to incorporate and easy-to-use graphical interface for antenna alignment, satellite acquisition and peaking, transmitter control, and access to the built.in spectrum analyzer, beacon detector, and DVB receiver.
1.8 Meter Sigma Link Baseband Model
System |
C-Band |
X-Band |
Ku-Band |
|
Rx Tx |
Rx Tx |
Rx Tx |
EIRP |
N/A 53.3 dBW |
N/A >61 dBW |
N/A 58.3 dBW |
G/T |
15.3 dB/K N/A |
>19 dB/K N/A |
23.7 dB/K N/A |
Frequency |
3.4 - 4.2 GHz 5.85 - 6.425 GHz |
7.25 - 7.75 GHz 7.9 - 8.4 GHz |
10.95 - 12.75 GHz 13.75 - 14.5 GHz |
Midband Gain |
35.4 dBi 39.3 dBi |
41 dBi 41.7 dBi |
45.1 dBi 46.8 dBi |
X-pol |
30 dB on axis, 30 dB on axis, |
N/A N/A |
35dB on axis, 35dB on axis, |
|
23 dB within 1 dB contour 23 dB within 1 dB contour |
|
23 dB within 1db contour 23 dB within 1db contour |
Axial Ratio |
N/A N/A |
1.5 dB 1.5 dB |
N/A N/A |
Sidelobe |
ITU 580 / IESS 207 |
Meets DSCS |
Meets IESS 208 |
Isolation Tx - Rx |
-60 dB N/A |
-110 dB N/A |
-85 dB N/A |
Rx - Tx |
N/A -50 dB |
N/A -110 dB |
N/A -30 dB |
Reflector Size |
1.8m, 4 piece segmented reflector, offset feed |
1.8m, 4 piece segmented reflector, offset feed |
1.8m, 4 piece segmented reflector, offset feed |
Antenna Travel Az |
+/- 35 degrees fine adjust |
+/- 35 degrees fine adjust |
+/- 35 degrees fine adjust |
El |
0 - 90 degrees |
0 - 90 degrees |
0 - 90 degrees |
Pol |
+/- 90 degrees |
+/- 90 degrees |
+/- 90 degrees |
Feed |
2-port linear |
2-port circular |
2-port linear |
Remote Internet Connection, Satcom News Gathering, Emergency and Disaster Response Communications
