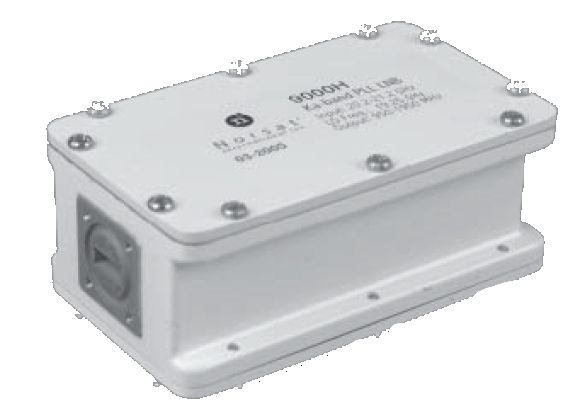

Norsat 9000H Series Ka-Band PLL LNB 18.20- 21.20 GHz

Norsat 9000XAEF KA-BAND Ext Ref LNB (17.30 - 17.80 GHz) Type F

Norsat 9000XAEF KA-BAND Ext Ref LNB (17.30 - 17.80 GHz) Type F

Login To See Price
SKU
Norsat 9000H
Norsat 9000H Series Ka-Band PLL LNB 18.20- 21.20 GHz is available to buy in increments of 1

Ka-Band Frequency configurations from: 18.20 to 21.20 GHz, L.O. Stability: ±70.0 kHz , RF Output: "F"-female or Type-N Connector, 1.4 dB Noise Figure

The Norsat 9000H Series Ka-Band PLL Low Noise Block Converter provides exceptional RF performance over Ka-Band satellite frequencies in three seperate frequency band configurations ranging from 18.20 to 21.20 GHz. The 9000H LNB features an extremely stable local oscillator that delivers ±70 kHz (3 ppm) L.O. stability.  L-Band (950 to 1950 MHz) RF output configuration is provided via either a 50-ohm type-N female connector, or an F-connector.  Ka-Band RF frequency input is accomplished with a precision grooved WR42 waveguide flange.

Local oscillator frequency: 17.25 , 18.25 , or 19.25 GHz depending on frequency band configuration

Norsat 9000H LNB Frequency chart

Noise Figure: 1.4 dB

Norsat 9000H Series LNB Ordering Information

Norsat 9000H Ordering Configuration Information

Outline Diagram

Norsat 9000H Ka-Band LNB Mechanical Diagram

TYPICAL SPECIFICATIONS

Noise Figure: 1.4 dB

L.O. stability ±70 kHz (2 ppm)

Phase noise (SSB): -70 dBc/Hz at 1 kHz, -85 dBc/Hz at 10 kHz, -100 dBc/Hz at 100 kHz

Input VSWR: 2.2 : 1

Output VSWR: 2.0 : 1

Gain Flatness over 1000 MHz:    4.0 dB p-p

Gain variation over temperature 5 dB max

Conversion gain 55 dB

Output P1dB 5 dBm

Power requirements +15 to +24 V supplied through center conductor of IF cable

Current drain 160 mA

Input Waveguide WR42

Dimensions 122 (L) x 60 (W) x 45 (H) mm

Weight 14 oz.

Temperature Range -40°C to +60°C


Frequency Bands Available

9000HA

 9000HB

9000HC

18.20 to 19.20

19.20 to 20.20

20.20 to 21.20

17.25

 18.25

19.25

950 to 1950

950 to 1950

950 to 1950

Ka-Band VSAT Antennas, Prime Focus & Offset reflectors, TVRO, Ka-Band Broadband Services
