Norsat 7020STC 2W Ka-Band Non-Inverted Block Upconverter

Norsat ATOMBKA050 50W Ka-Band BUC

Norsat ATOMBKA050 50W Ka-Band Block Upconverter

Norsat 7040STC 4W Ka-Band BUC

Norsat 7040STC 4W Ka-Band Non-Inverted Block Upconverter

SKU
NSAT-7020STCN
Norsat 7020STC 2W Ka-Band Non-Inverted Block Upconverter is available to buy in increments of 1

Tx Frequency: 29.5 - 30.0 GHz, Gain stability over temperature ±2.0 dB at any constant frequency, Type N input connector

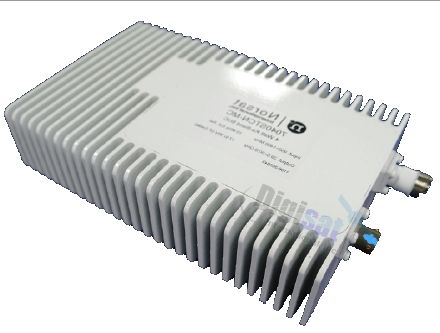

Norsat 7020STC 2W Ka-Band BUC

Norsat 7020STC Ka-Band 2W Block Upconverter (Non-Inverted), Output Freq: 29.5 to 30.0 GHz, Input Freq: 950 to 1450 MHz, , L.O. Freq: 28.55 GHz, Gain: 55 dB, Output to P1dB: >33 dBm, Ext Ref: 10 MHz, Output Waveguide: WR28 Flange, Input Connector: Type N female


Outline Dimensions

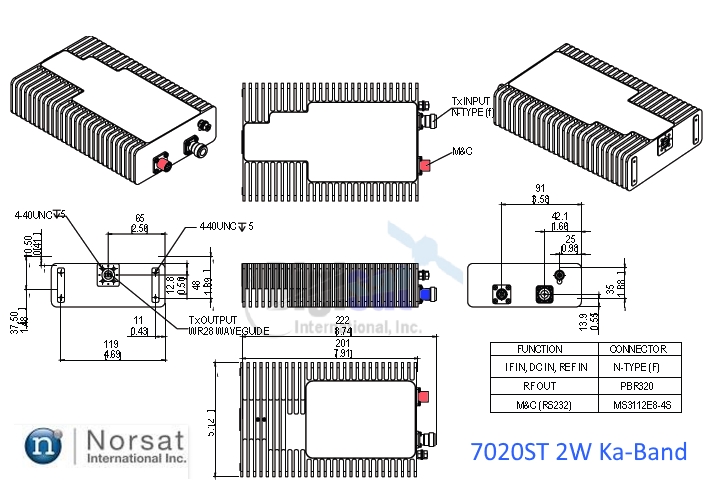

 Norsat 7020STC 2W Ka-Band BUC Outline Dimensions

RF Specifications

arrow  Output frequency 29.5 GHz to 30.0 GHz

arrow Input frequency 950 to 1450 MHz

arrow Output to P1dB 33 dBm

arrow L.O. frequency options 28.55 GHz

arrow Input VSWR 1.5 : 1

arrow Output VSWR 2.0 : 1

arrow Phase noise (SSB) -47 dBc/Hz at 100 Hz

-72 dBc/Hz at 1 kHz

-77 dBc/Hz at 10 kHz

-92 dBc/Hz at 100 kHz

-105 dBc/Hz at 1 MHz

arrow External reference 10 MHz signal frequency

arrow Power requirements +17 to +30 V supplied through center conductor of IF cable

arrow Output Waveguide WR28

arrow Dimensions 220 (L) x 130 (W) x 48 (H) mm (8.7″ x 5.1″ x 1.9″)

arrow Weight 1.5 kg

arrow External reference level -5 to +5 dBm

arrow 10 MHz external reference -140 dBc/Hz at 1 kHz phase noise

arrow Gain 55 dB

arrow Gain stability over temperature ±2.0 dB at any constant frequency

arrow Gain stability over operating ±2.0 dB over full band temperature

arrow Temperature Range -30°C to +60°C

arrow OPTIONAL- Monitor & Control RS232, PLL Lock, Tx on/off


How to Order

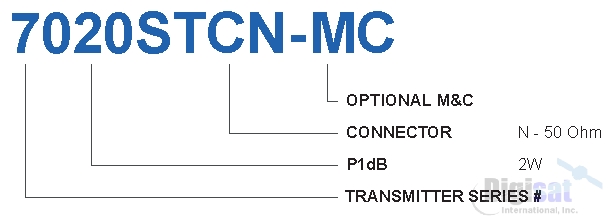

Norsat 7020STC 2W Ka-Band BUC RF Configuration Chart

VSAT systems such as flyaway, maritime and mobile where compact and highly portable equipment is required
