Norsat 7005STC-O3B 5W Ka-Band Block Upconverter
Output Freq A: 27.652 – 28.388 GHz, B: 28.172 – 29.071 GHz, Input Freq A: 1052 - 1788 MHz, B: 972 - 1871 MHz, Gain stability over temperature ±2.5 dB at any constant frequency, Type N input connector

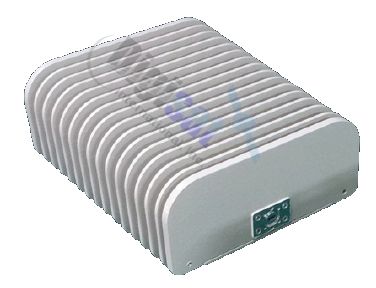

Norsat 7005STC-O3B 5W Ka-Band BUC
Norsat 7005STC-O3B Ka-Band 5W Block Upconverter, Output Freq: A: 27.652 – 28.388 GHz, B: 28.172 – 29.071 GHz, Input Freq A: 1052 - 1788 MHz, B: 972 - 1871 MHz, L.O. Freq A: 26.60 GHz B: 27.20 GHz, Gain: 55 dB, Output to P1dB: 35 dBm, Ext Ref: 10 MHz, Output Waveguide: WR28 Flange, Input Connector: Type N female

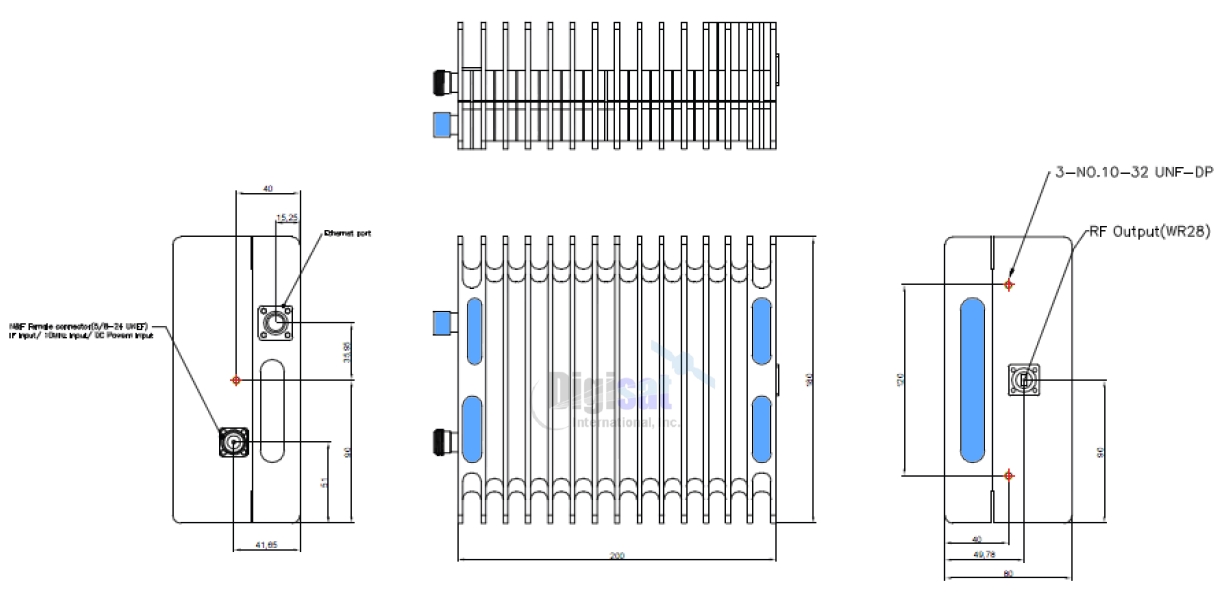

Outline Dimensions
RF Specifications
Output Frequency:
A: 27.652 – 28.388 GHz
B: 28.172 – 29.071 GHz
Input Frequency
A: 1052 - 1788 MHz
B: 972 - 1871 MHz
L.O. Frequency
A: 26.60 GHz
B: 27.20 GHz
Frequency Conversion Double conversion
Frequency sense No inversion
Saturate Output Power 37 dBm min. @ -40°C to 25°C
36 dBm min. @ up to 55°C
Maximum linear output power 35 dBm min.
Input Return Loss 10 dB max
Output Return Loss 10 dB max
Phase noise:
-73 dBc max.at 1kHz (SSB)
-83 dBc max. at 10kHz
-93 dBc max. at 100kHz
External Reference (Sig Freq) 10 MHz
External Reference level -5 to +5 dBm
External Reference(Ph/Noise) -145 dBc/Hz max. @1KHz
Spectral Regrowth 25 dBc max @ 35 dBm
Group delay variation ±5.0 nanoseconds over any 216MHz
Spurious: Signal rated -60dBc max @ 35dBm
Signal independent -60dBm
2IF+LO -60dBc @ 35dBm
LO Leakage -60dBm
Gain 58 dB (typ)
Gain stability over temp ±2.5 dB at any const. frequency
Gain flatness ±1.5 dB in any 216 MHz
±2.5 dB over full band
Operating Temp -40°C to 55°C
Power requirements +36 to +72 VDC supplied through MS connector
Power consumption 88W (max)
Input Interface N-female
Output Interface WR-28
Dimensions 200 (L) x 180 (W) x 80 (H) mm
Weight 2.5kg
M & C interface Ethernet or RS232 through MS3112e14-12P connector

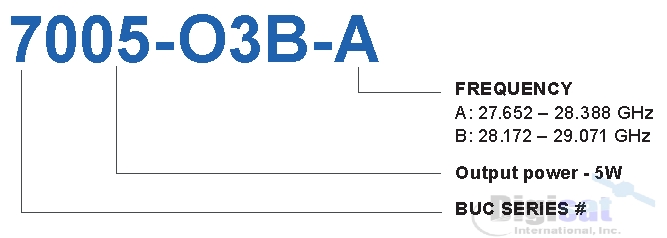

How to Order
O3B VSAT systems such as flyaway, maritime and mobile where compact and highly portable equipment is required
