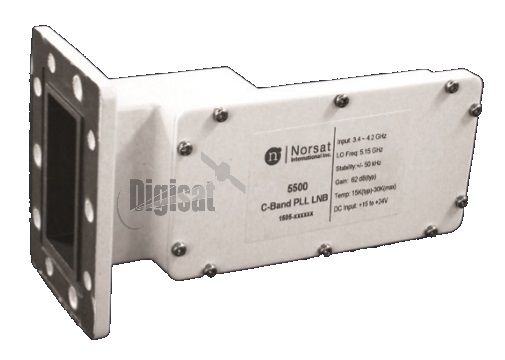

Norsat 5500F C-Band PLL LNB ±50 kHz F-Type

Norsat 3530F C-Band LNB

Norsat 3530F C-Band (3.4 to 4.2 GHz) PLL LNB (F-Connector)

Norsat 5000R LNB C-Band PLL

Norsat 5000R Series C-Band PLL LNB with Interference Rejection

$264.00
SKU
NST-5500F
Norsat 5500F C-Band PLL LNB ±50 kHz F-Type is available to buy in increments of 1

NORSAT 5500F C-BAND PLL LNB +/-50 KHZ F-Type

Ideal for DVB (Digital Video Broadcast), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications

  • Input Frequency: 3.4 - 4.2 GHz
  • L.O. Stability: +/-50 kHz
  • Noise Figure: 15K typical
  • Output Connector: F-Type Female
  • L.O. Frequency: 5.15 GHz
  • Conversion Gain: 62 dB typical
  • Output frequency (MHz) 950 – 1750 MHz

Norsat 5500F C-Band LNB

Norsat 5500F LNB Mechanical Dimensions


TYPICAL SPECIFICATIONS

  • L.O. stability ±50 kHz – ±100 kHz  depending on model number
  • Noise temperature 15 K typ., 30 K max.
  • Phase noise -65 dBc/Hz @ 1 kHz offset  -80 dBc/Hz @ 10 kHz offset  -95 dBc/Hz @ 100 kHz offset
  • Input VSWR & Output VSWR 2.3:1
  • Conversion gain 62 dB typical  55 dB min  70 dB max
  • Output P1dB 10 dBm
  • Power requirements 12 - 24V DC supplied through  center conductor of IF cable Current drain 250 mA
  • Input Waveguide CPR 229G
  • Dimensions 190 (L) x 115 (W) x 78 (H) mm  (7.1 x 4.0 x 2.8 in)
  • Weight 580 g / 20.5 oz
  • Temperature Range -40°C to +60°C

Ideal for DBV (Digital Broadcast Video), VSAT Broadband, Military Satcom, Point-of-Sale, and Oil and Gas applications
