Norsat 1208HU Quad Ku-Band PLL LNB is available to buy in increments of 1

1208HU Quad-Band

The Norsat 1208HU Series Quad Ku-Band LNB provides exceptional performance for land based fixed VSAT systems and maritime satellite internet applications. The 1208HU features quad-band operation in four frequency bands- 10.7- 11.7, 10.95- 11.7, 11.7- 12.75, and 12.25 - 12.75 GHz. This LNB also features two options for RF Output connectors- Type-N and F-connector.

Local oscillator frequency is dependent on which frequency band is utilized- 9.75, 10.0, 10.75, and 11.30 GHz. LO stability rating is ±25 kHz. Precision WR75 waveguide flange provides RF input with a noise figure of .8 dBm

Norsat 1208HU Ku-Band Frequency Bands

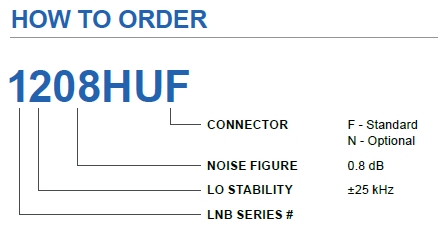

Norsat 1208HU Series Ordering Information

Norsat 1208HU Ordering Information


Outline Diagram

Norsat 1208HU Mechanical Diagram

TYPICAL SPECIFICATIONS

Noise Figure 0.8 dBm

LO Stability ±25 kHz

LO Phase Noise -73 dBc at 1 kHz, -78 dBc at 10 kHz, -100 dBc at 100 kHz, -110 dBc at 1 MHz

Gain 55 dB

Output P1dB +15 dBm

DC Power:
Band 1 13 V
Band 2 13 V / 22KHz Tone
Band 3 18 V
Band 4 18 V / 22KHz Tone



Current 350 mA

Specs for ToneFreq. 22 kHz ±4 kHz

Amp. 0.6 ± 0.2 V

Duty Cycle 50% ±10%

Input Waveguide WR-75

Output (waterproof) F-connector (75 ohm), N (Optional) (50 ohm)

Dimensions 140 x 70 x 44 (L x W x H)

Weight 300 g

Operating Temperature -30 ~ +60˚C

Storage Temperature -40 ~ +80˚C


Frequency Bands Available

                                                             Band 1

Band 2

Band 3

Band 4

Frequency Band

10.7 ~ 11.7 GHz

10.95 ~ 11.7 GHz

11.7 ~ 12.75 GHz

12.25 ~ 12.75 GHz

(RF Input)



LO Frequency

9.75 GHz

10.00 GHz

10.75 GHz

11.30 GHz

IF Frequency

950 ~ 1950 MHz

950 ~ 1700 MHz

950 ~ 2000 MHz

950 ~ 1450 MHz

Maritime Satellite Communications Systems, Global VSAT Service, TVRO, Broadband Internet Systems, Mobile VSAT Antennas
